6AG16772DB422GB0

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Manufacturer Series	SIPLUS ET 200SP
	For Use With	SIMATIC ET 200SP
	Voltage Category	24 V DC
	Network Type	Ethernet
	Programming Interface	Profibus, Profinet

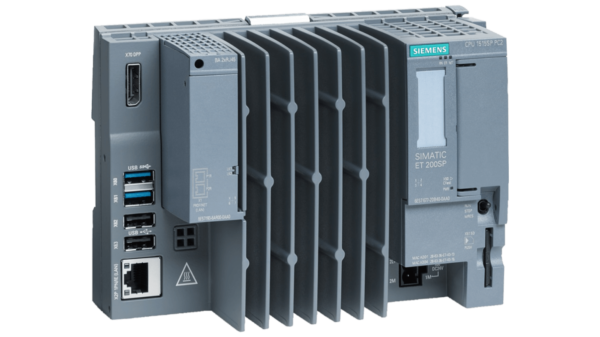

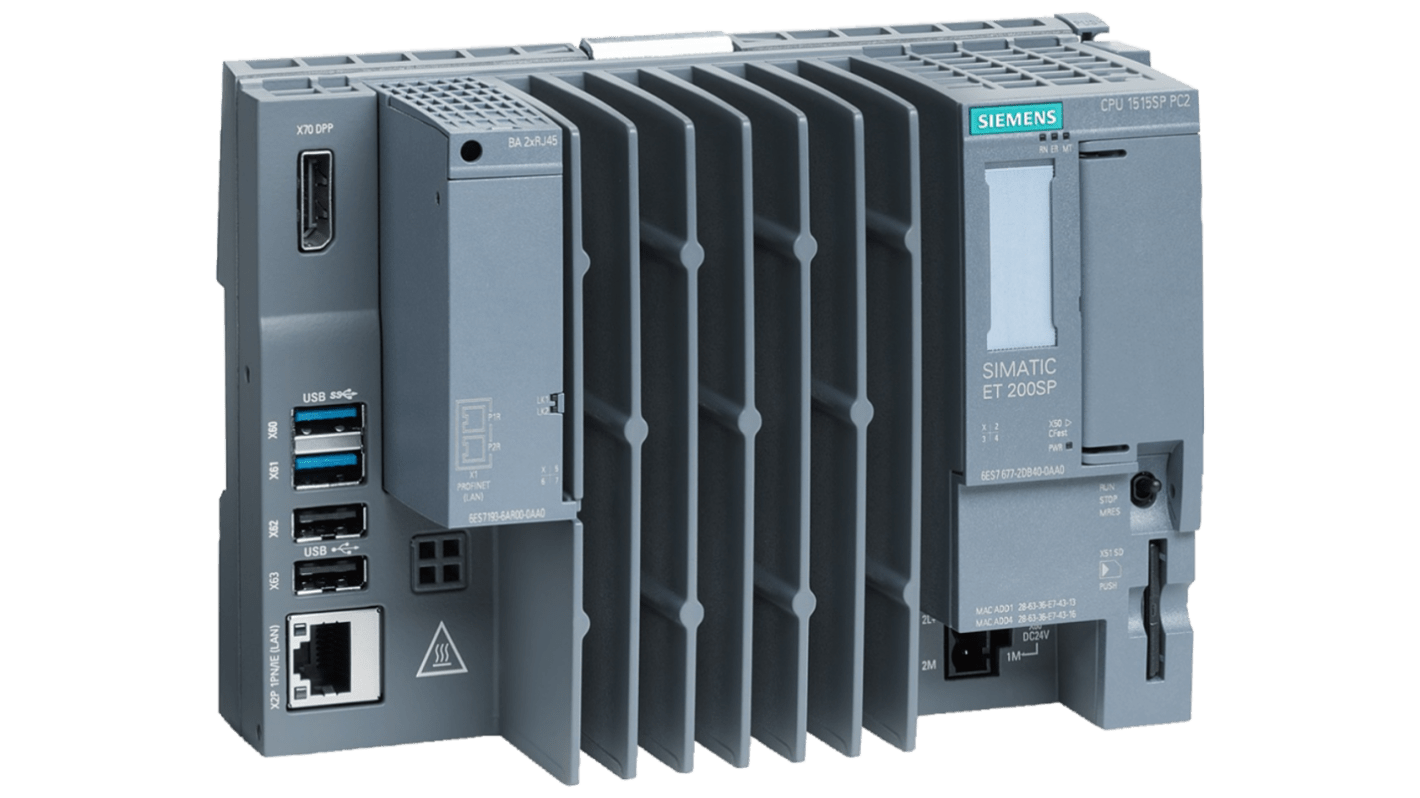

The Siemens SIMATIC CPU 1515SP PC2 for ET 200SP has 8 GB RAM, 30 GB CFast with Windows 10 IoT Enterprise 64-bit and S7-1500 Software Controller CPU 1505SP pre-installed, Documentation on CFast Restore image on Cast. The CPU comes with interfaces such as 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP Bus Adapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3.0

2x USB 2.0, 1x DisplayPort, documentation on USB flash drive, restore USB flash drive.

Bit operations, typ. up to 10 ns
Number of IO modules 2048
Transmission rate, max. 12 Mbit
