6ED1052-1HB08-0BA2

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Manufacturer Series	LOGO!
	Number of Inputs	8
	Output Type	Relay
	For Use With	LOGO! 8.4
	Supply Voltage	24 V dc
	Input Type	Digital
	Number of Digital Inputs	8
	Number of Outputs	4
	Voltage Category	24 V ac/dc
	Network Type	Ethernet
	Number of Digital Outputs	4
	Output Current	10 A
	Width	71.5mm
	Number of Communication Ports	1
	Programming Interface	Ethernet
	Maximum Operating Temperature	+55°C
	Mounting Type	DIN Rail
	Length	90mm
	Minimum Operating Temperature	-20°C

Seamlessly connect with digital and analogue standard signal types using this PLC (programmable logic controller) from Siemens. It’s an ideal controller for automation tasks in industry and building services as it has a modular design that allows for customised configurations. A drag-and-drop function makes writing logic programmes straightforward, while a built-in web server lets you build and host web pages. It’s a user-friendly choice, thanks to ready-to-use functions that usually have to be first programmed into a PLC. These include ON/OFF delay, weekly timer and stopwatch.

• Allows for the programming of your own macro functions and creation of libraries from tested sub-functions
• Versatile device approved for use in marine applications
• Operates at temperatures from -20°C to +55°C without the risk of condensation
• Includes an Ethernet interface for easy communication with a personal computer or other CPUs (central processing units)

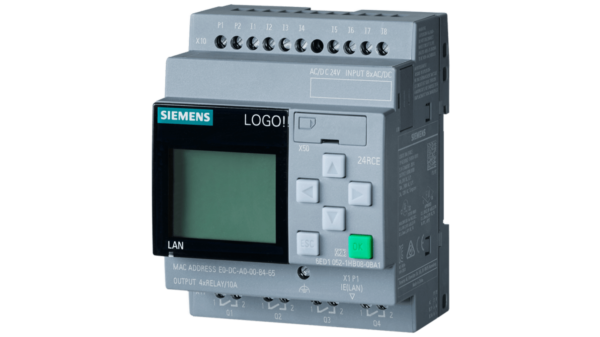

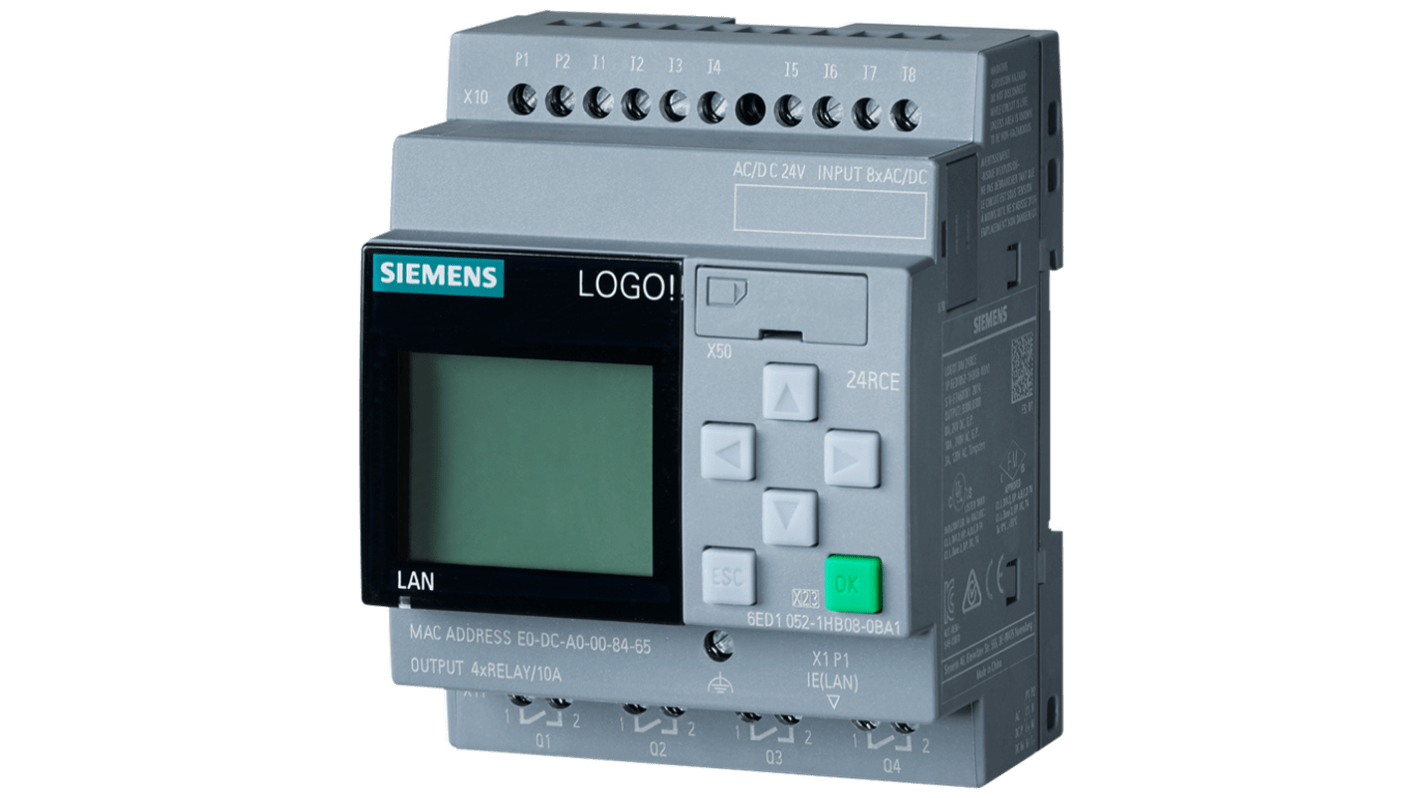

The Siemens LOGO! series PLC CPU has 8 inputs, 4 outputs, can be used with LOGO! 8.4 and has DIN rail mounting type.
