6ED1055-1NB10-0BA2

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Manufacturer Series	LOGO!
	Number of Inputs	8
	Output Type	Relay
	For Use With	LOGO! 8, LOGO! 8.2
	Supply Voltage	24 V dc
	Input Type	Digital
	Number of Digital Inputs	8
	Number of Outputs	8
	Number of Digital Outputs	8
	Minimum Operating Temperature	0°C
	Programming Interface	Computer
	Output Current	5 A
	Mounting Type	DIN Rail
	Width	71.5mm
	Length	90mm
	Depth	58mm
	Standards Met	CE, CSA, FM
	Dimensions	90 x 71.5 x 58 mm
	Maximum Operating Temperature	+55°C

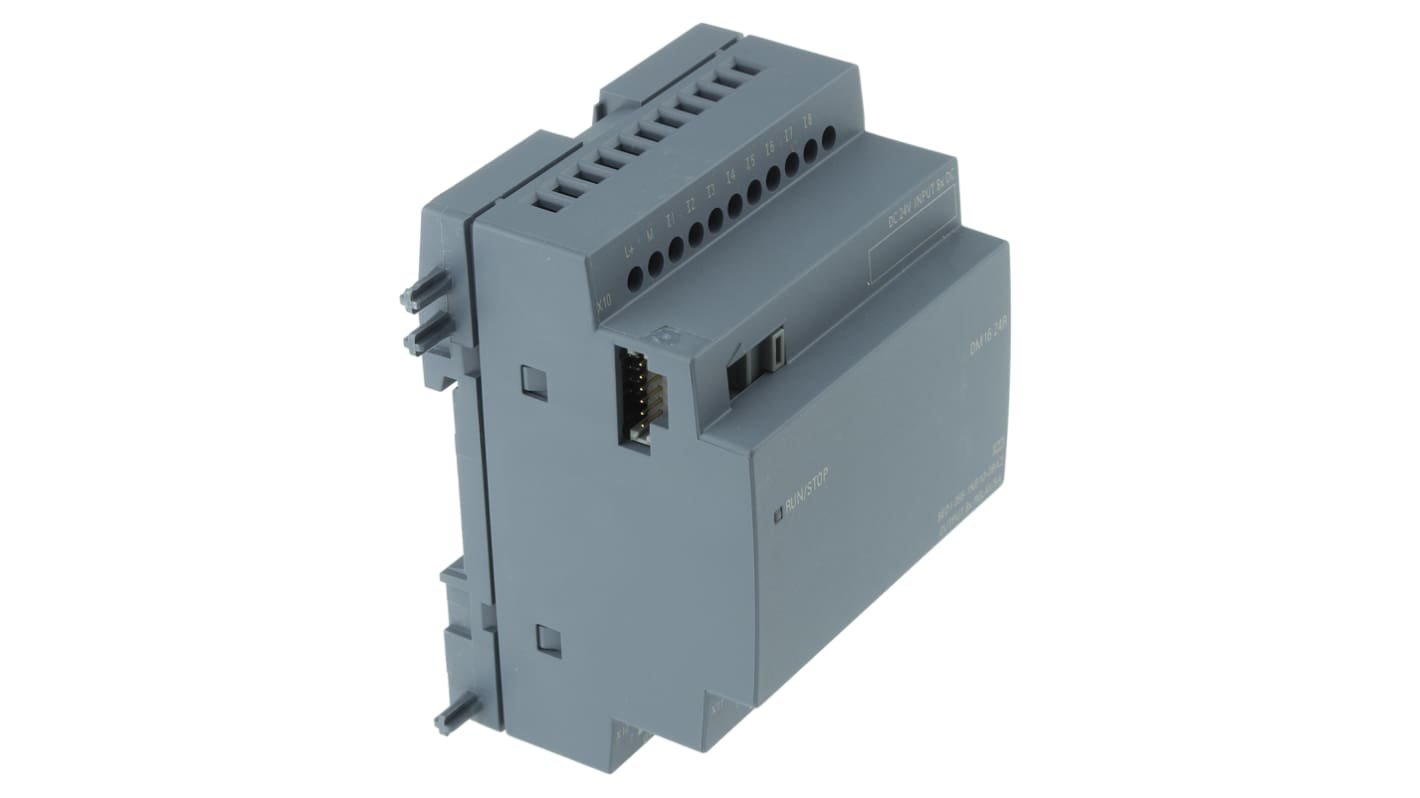

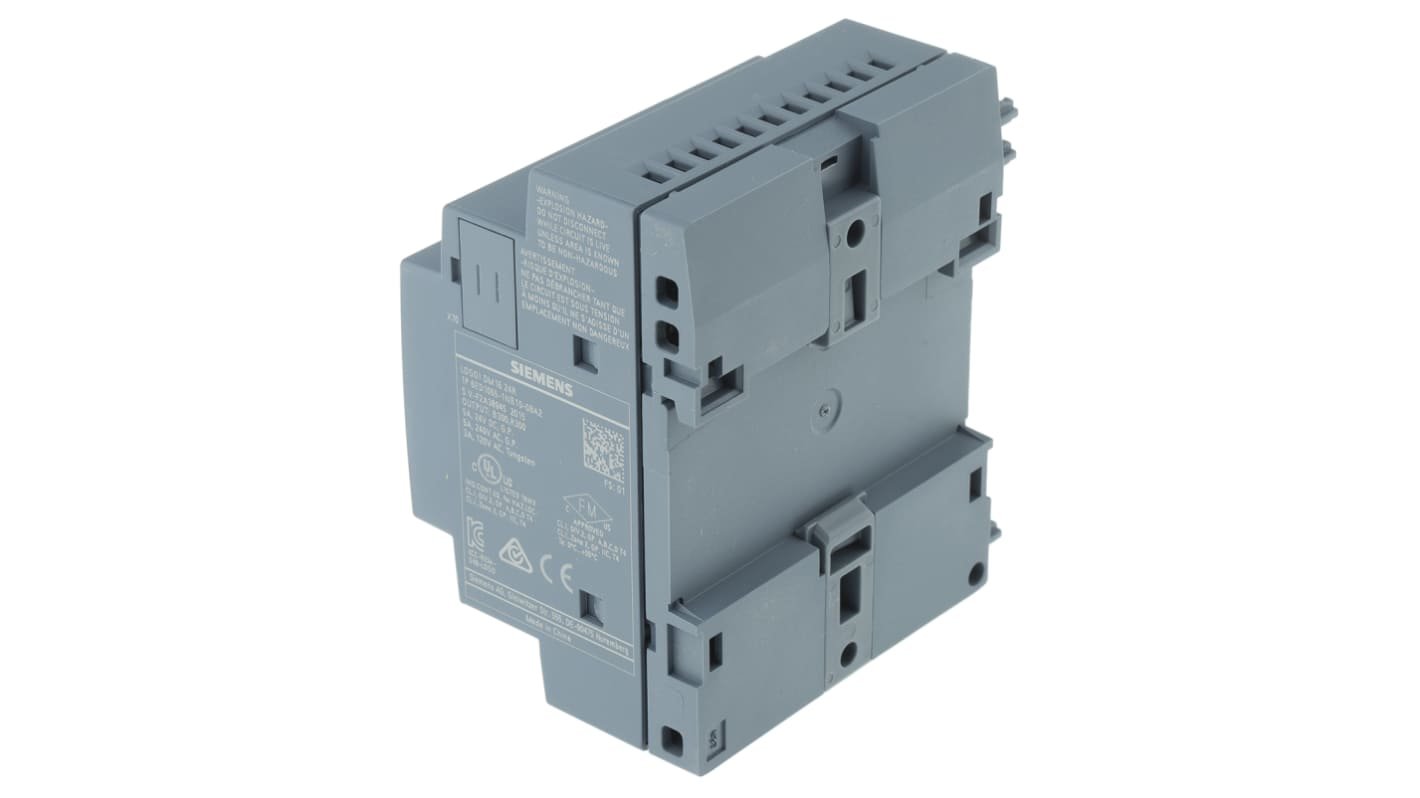

Connect your field device to a programmable logic controller using this I/O module from Siemens. It features 8 digital inputs and 8 relay outputs, so you can control and monitor multiple machine sensors at the same time. For versatility, it’s compatible with logic modules from the LOGO! 8 series as well as the LOGO! 8.2 series. A broad operating temperature range between 0°C and +55°C makes it suitable for use in demanding environments. Mounting the module is easy – simply clip it onto a DIN rail. Thanks to its compact dimensions of 90 (length) x 71.5 (width) x 58mm (depth), it fits easily in small spaces. Use this device to expand the functionality of the logic module in your PLC.

• Screw terminals for secure electrical connections
• Output current rating of 5A for energy-efficient operation

It has a computer programming interface, meaning you can configure it by connecting it to your control computer. To set its operating parameters, use the compatible LOGO! Soft Comfort V8.1 software (825-1704). This software uses a simple drag-and-drop interface, eliminating the need for complex programming languages like HTML.
