| Part #: | 6ES7212-1AE40-0XB0 |
|---|---|
| Manufacturer: | Siemens |

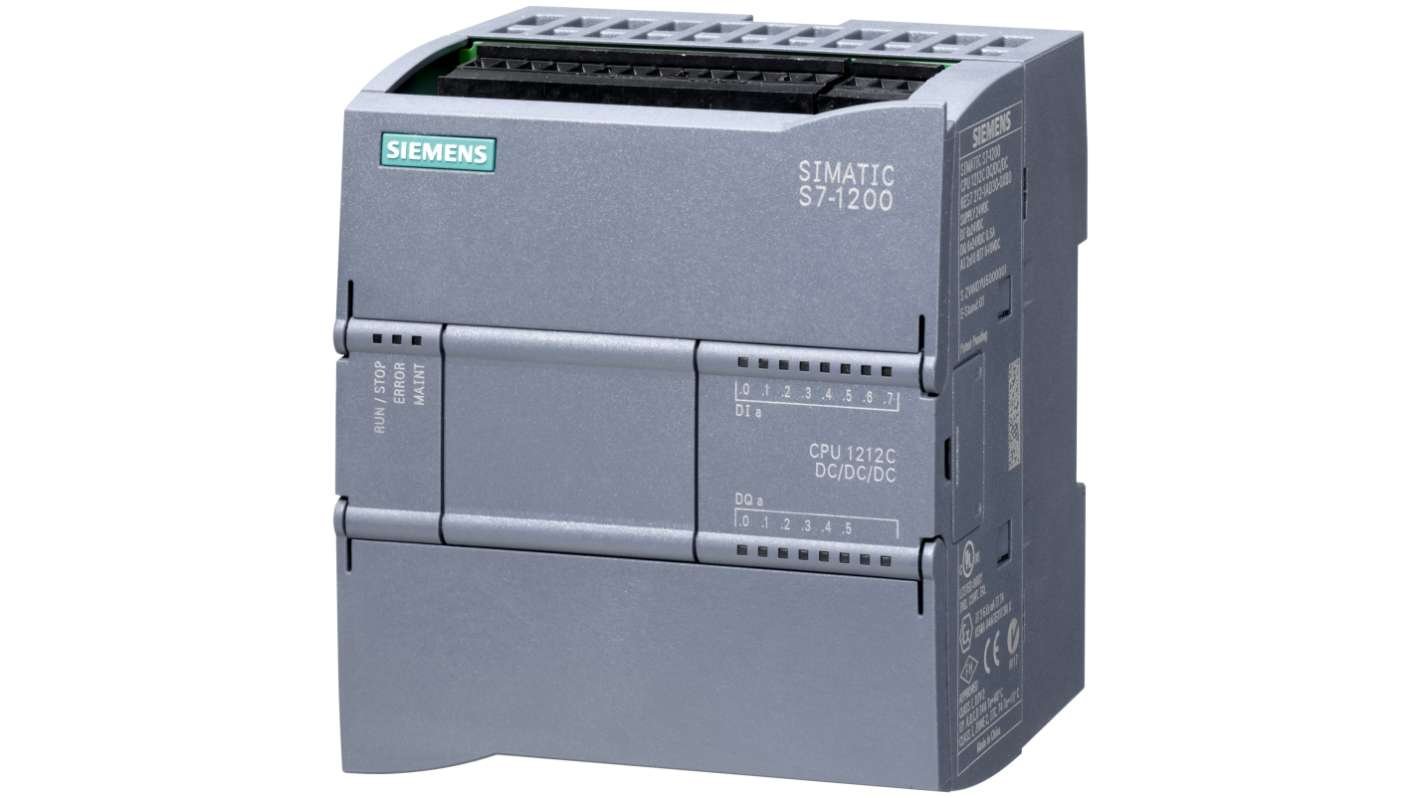

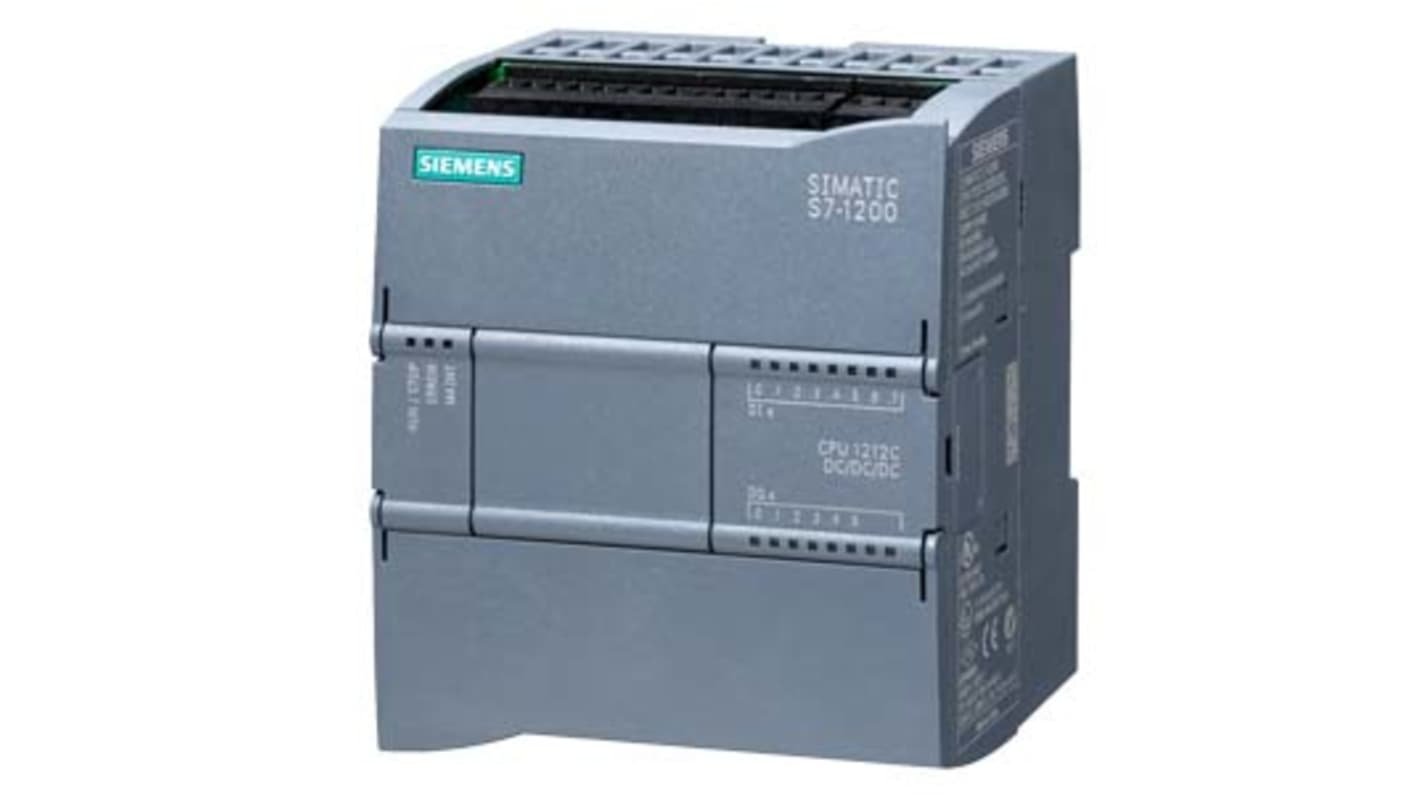

| Description: | Siemens SIMATIC S7-1200 Series PLC CPU for Use with SIMATIC S7-1200 Series, 20.4 → 28.8 V dc Supply, Digital, |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | SIMATIC S7-1200 |
| Number of Inputs | 8 (Digital, 2 switch as Analogue) |
| Output Type | Digital, Transistor |
| For Use With | SIMATIC S7-1200 Series |
| Supply Voltage | 20.4 → 28.8 V dc |
| Input Type | Analogue, Digital |
| Number of Digital Inputs | 8 |
| Voltage Category | 24 V dc |
| Number of Outputs | 6 (Digital Output, Transistor Output) |
| Number of Digital Outputs | 6 |
| Network Type | Ethernet |
| Kit Included | No |
| Interface | Ethernet, PROFINET |
| Better World Claim | Saves energy |
| Better World Product | Yes |
| Number of Analogue Outputs | 0 |
| Number of Analogue Inputs | 2 |
| Mounting Type | DIN Rail, Wall Mount |
| Programming Language Used | FBD, LAD, SCL |
| Number of Communication Ports | 1 |
| Output Current | 500 mA |
| Width | 90mm |
| Maximum Operating Temperature | +60°C |
| Programming Interface | Profinet |
| Memory | 1 MB |
| Minimum Operating Temperature | -20°C |
| Depth | 75mm |
| Length | 100mm |
| Dimensions | 100 x 90 x 75 mm |
| Battery Backup | Yes |
| Communication Port Type | Ethernet, Profinet, UDP |
| Program Capacity | 50 kB |
| Display Included | No |
