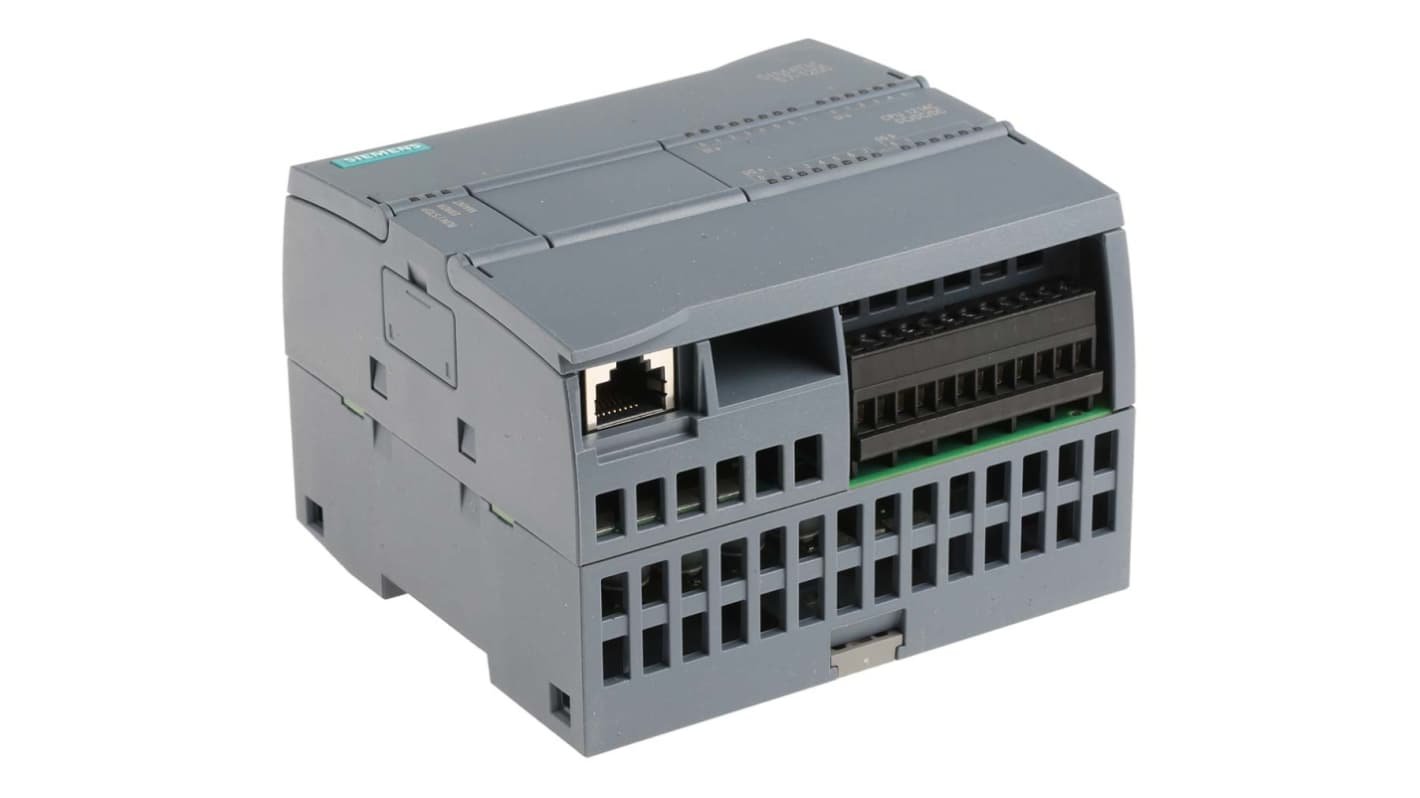

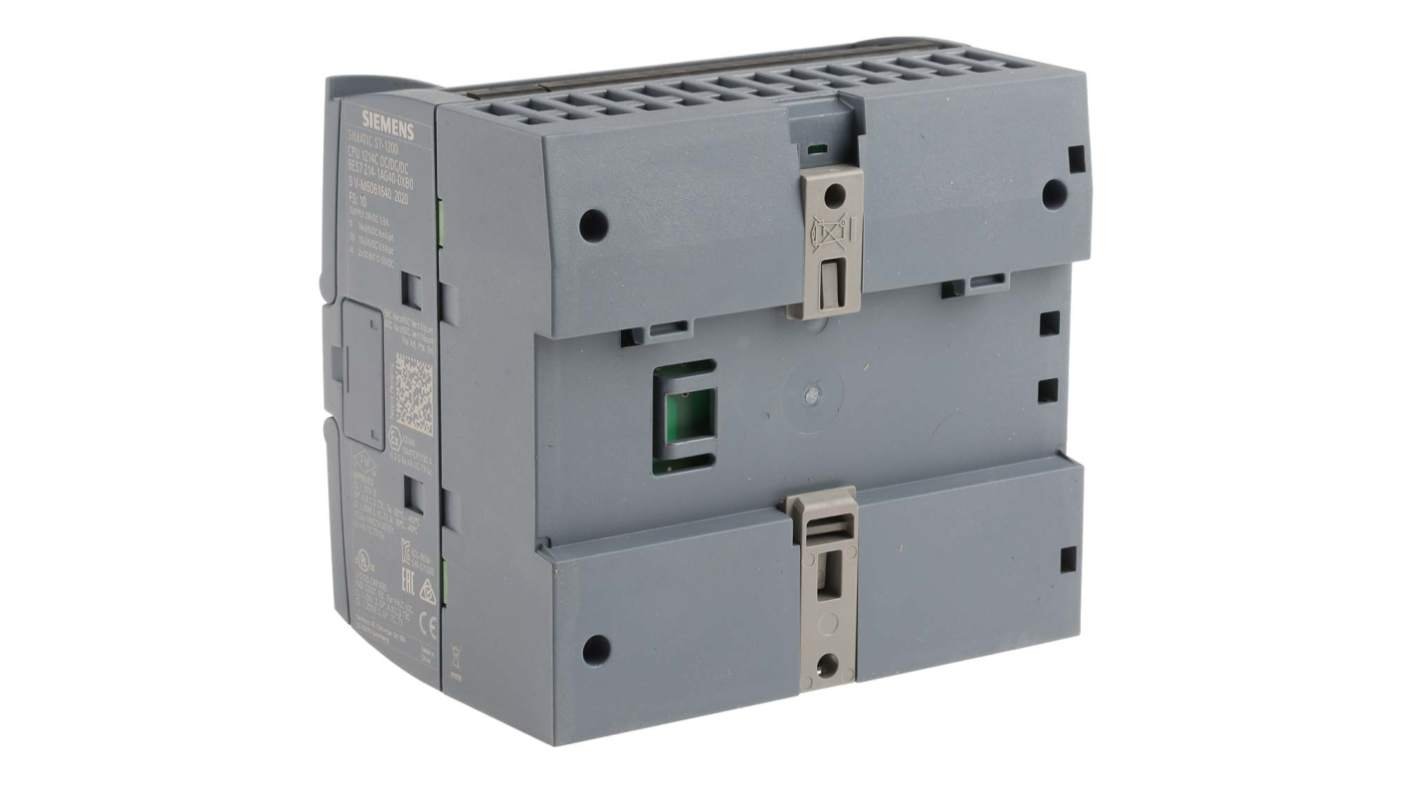

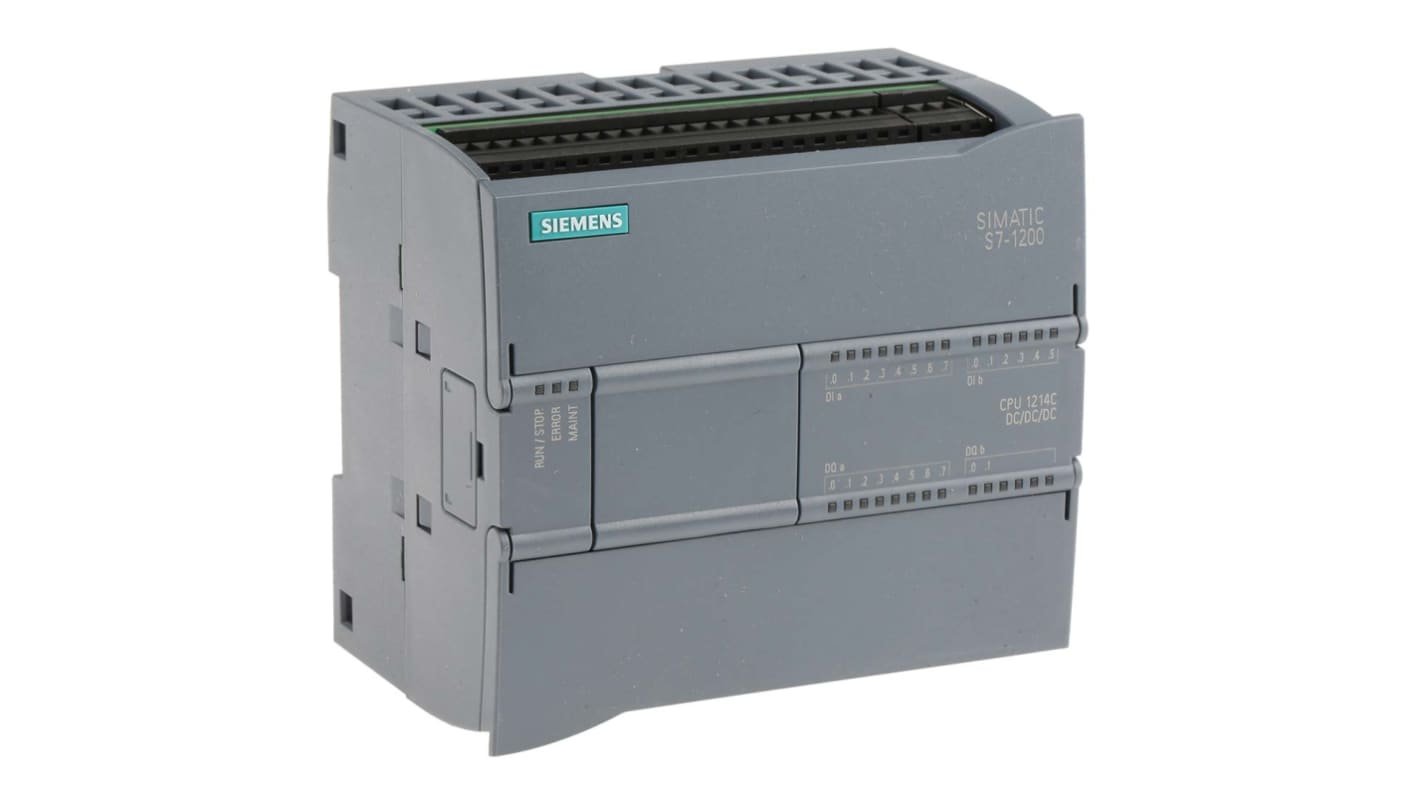

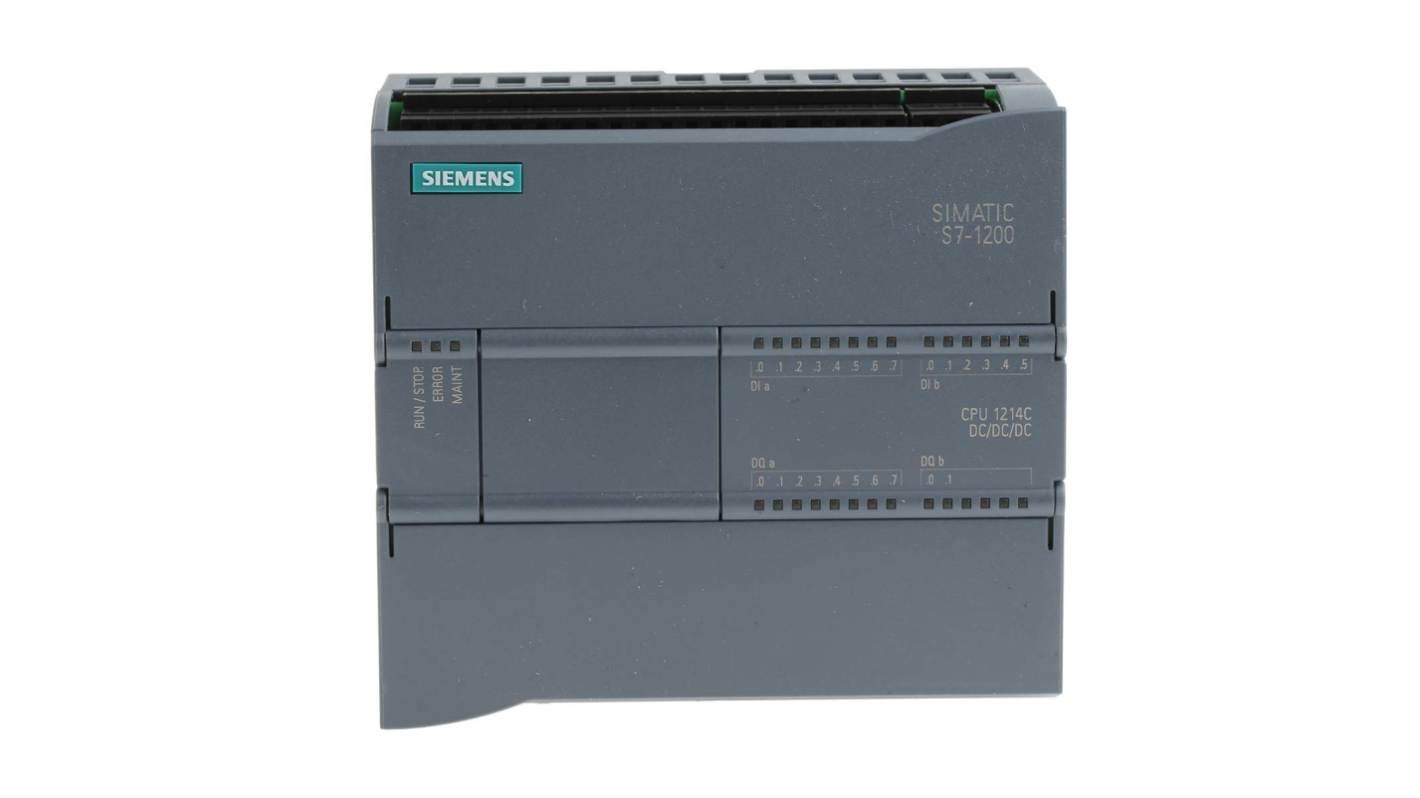

| Part #: | 6ES7214-1AG40-0XB0 |
|---|---|
| Manufacturer: | Siemens |
| Description: | Siemens SIMATIC S7-1200 Series PLC CPU for Use with SIMATIC S7-1200 Series, Digital, Transistor Output, 14 (Digital, 2 |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | SIMATIC S7-1200 |
| Number of Inputs | 14 (Digital, 2 switch as Analogue) |
| Output Type | Digital, Transistor |
| For Use With | SIMATIC S7-1200 Series |
| Input Type | Analogue, Digital |
| Number of Outputs | 10 (Digital Output, Transistor Output) |
| Voltage Category | 24 V dc |
| Network Type | Ethernet |
| Better World Product | Yes |
| Better World Claim | Saves energy |
| Programming Interface | Profinet |
| Minimum Operating Temperature | -20°C |
| Memory | 4 MB |
| Programming Language Used | FBD, LAD, SCL |
| Mounting Type | DIN Rail, Wall Mount |
| Maximum Operating Temperature | +60°C |
| Output Current | 500 mA |
| Number of Communication Ports | 1 |
| Width | 110mm |
| Length | 100mm |
| Depth | 75mm |
| Communication Port Type | Ethernet, Profinet, UDP |
| Program Capacity | 75 kB |
| Dimensions | 100 x 110 x 75 mm |
