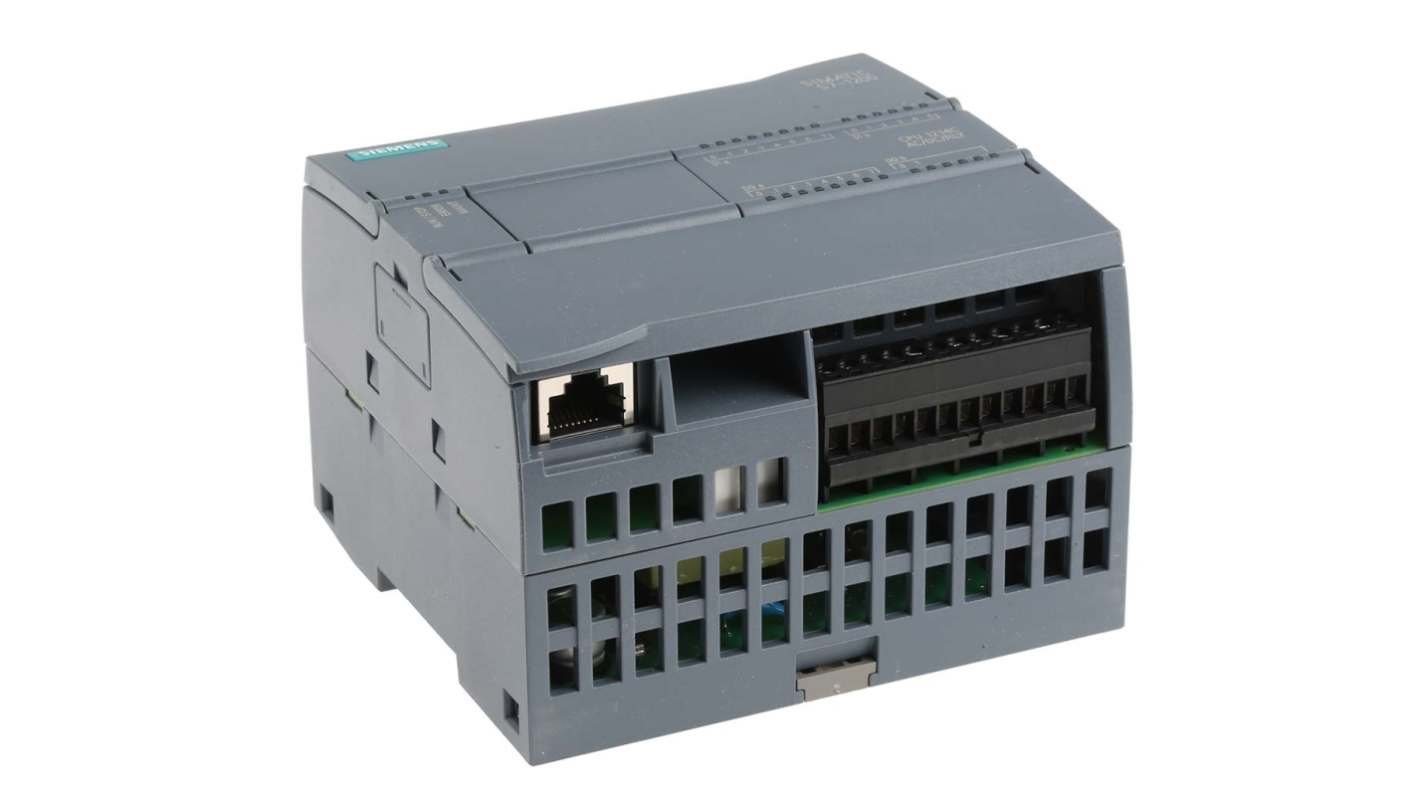

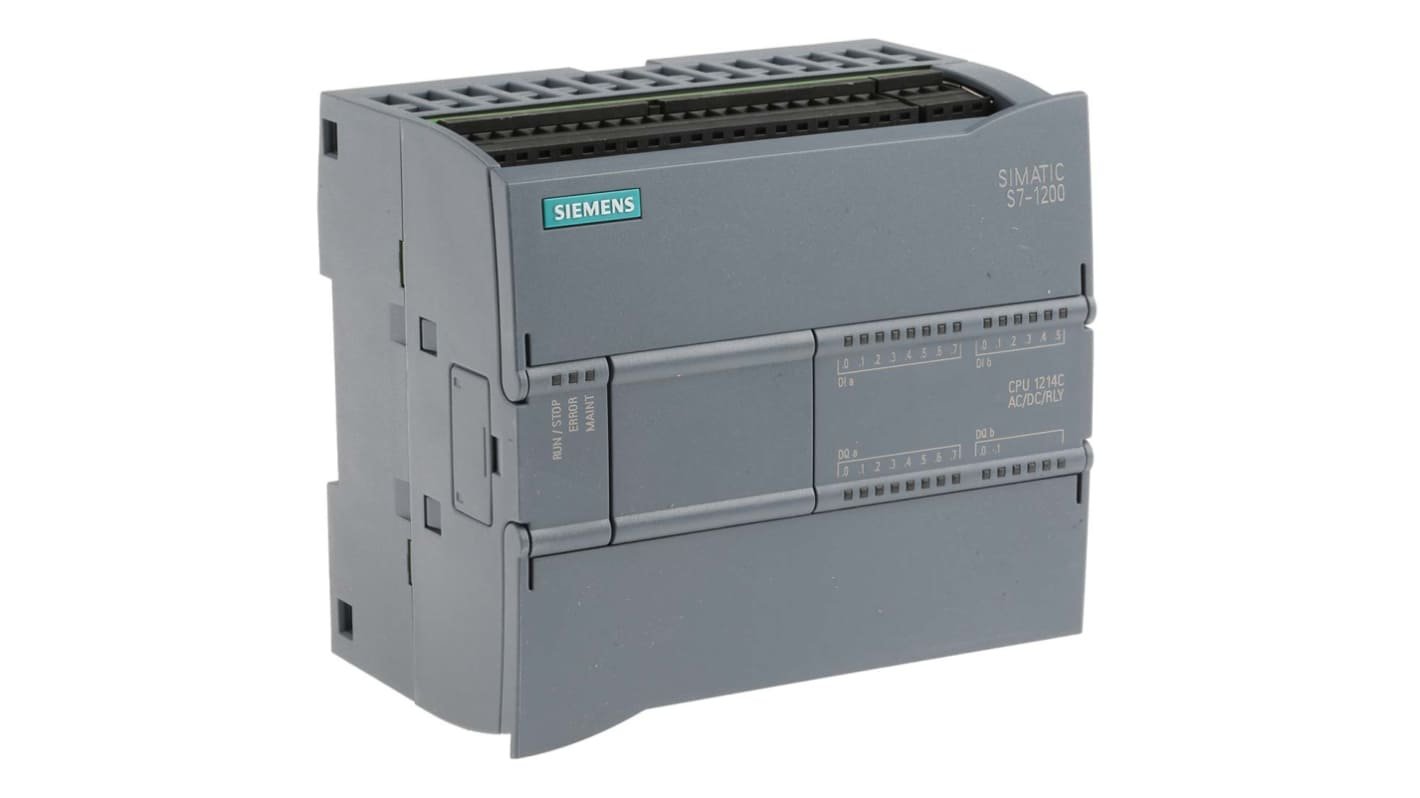

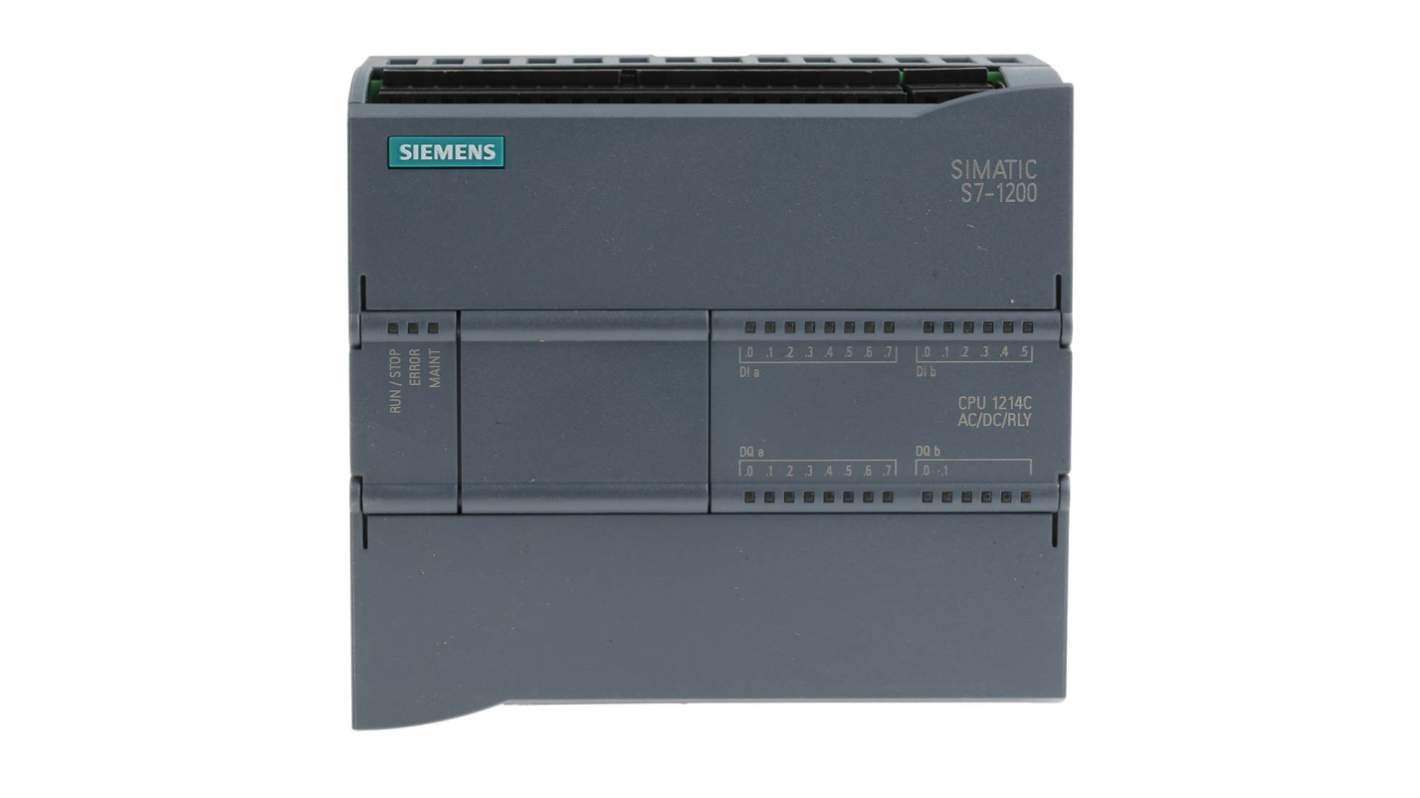

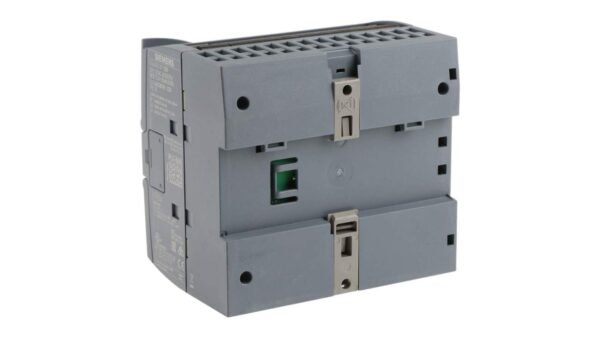

| Part #: | 6ES7214-1BG40-0XB0 |
|---|---|
| Manufacturer: | Siemens |
| Description: | Siemens SIMATIC S7-1200 Series PLC CPU for Use with SIMATIC S7-1200 Series, 85 → 264 V Supply, Digital, Relay |
|
Select all
|
Attribute
|
Value
|
|---|---|---|
|
|
Brand | Siemens |
|
|
Manufacturer Series | SIMATIC S7-1200 |
|
|
Number of Inputs | 14 (Digital, 2 switch as Analogue) |
|
|
Output Type | Digital, Relay |
|
|
For Use With | SIMATIC S7-1200 Series |
|
|
Supply Voltage | 85 → 264 V |
|
|
Input Type | Analogue, Digital |
|
|
Number of Digital Inputs | 14 |
|
|
Voltage Category | 85 → 264 V ac |
|
|
Number of Outputs | 10 (Digital Output, Relay Output) |
|
|
Network Type | Ethernet |
|
|
Number of Digital Outputs | 10 |
|
|
Better World Product | Yes |
|
|
Better World Claim | Saves energy |
|
|
Memory | 4 MB |
|
|
Maximum Operating Temperature | +60°C |
|
|
Output Current | 2 A |
|
|
Number of Communication Ports | 1 |
|
|
Programming Language Used | FBD, LAD, SCL |
|
|
Mounting Type | DIN Rail, Wall Mount |
|
|
Width | 110mm |
|
|
Length | 100mm |
|
|
Depth | 75mm |
|
|
Dimensions | 100 x 110 x 75 mm |
|
|
Minimum Operating Temperature | -20°C |
|
|
Programming Interface | Profinet |
|
|
Program Capacity | 75 kB |
|
|
Standards Met | CE, FM Approval, KC Approval, UL Approval |
|
|
Communication Port Type | Ethernet, Profinet, UDP |
|
|
Select all
|
|
|---|---|---|
|
|
Brand Siemens |
|
|
|
Manufacturer Series SIMATIC S7-1200 |
|
|
|
Number of Inputs 14 (Digital, 2 switch as Analogue) |
|
|
|
Output Type Digital, Relay |
|
|
|
For Use With SIMATIC S7-1200 Series |
|
|
|
Supply Voltage 85 → 264 V |
|
|
|
Input Type Analogue, Digital |
|
|
|
Number of Digital Inputs 14 |
|
|
|
Voltage Category 85 → 264 V ac |
|
|
|
Number of Outputs 10 (Digital Output, Relay Output) |
|
|
|
Network Type Ethernet |
|
|
|
Number of Digital Outputs 10 |
|
|
|
Better World Product Yes |
|
|
|
Better World Claim Saves energy |
|
|
|
Memory 4 MB |
|
|
|
Maximum Operating Temperature +60°C |
|
|
|
Output Current 2 A |
|
|
|
Number of Communication Ports 1 |
|
|
|
Programming Language Used FBD, LAD, SCL |
|
|
|
Mounting Type DIN Rail, Wall Mount |
|
|
|
Width 110mm |
|
|
|
Length 100mm |
|
|
|
Depth 75mm |
|
|
|
Dimensions 100 x 110 x 75 mm |
|
|
|
Minimum Operating Temperature -20°C |
|
|
|
Programming Interface Profinet |
|
|
|
Program Capacity 75 kB |
|
|
|
Standards Met CE, FM Approval, KC Approval, UL Approval |
|
|
|
Communication Port Type Ethernet, Profinet, UDP |
|
