| Part #: | 6ES7515-2TM01-0AB0 |
|---|---|
| Manufacturer: | Siemens |

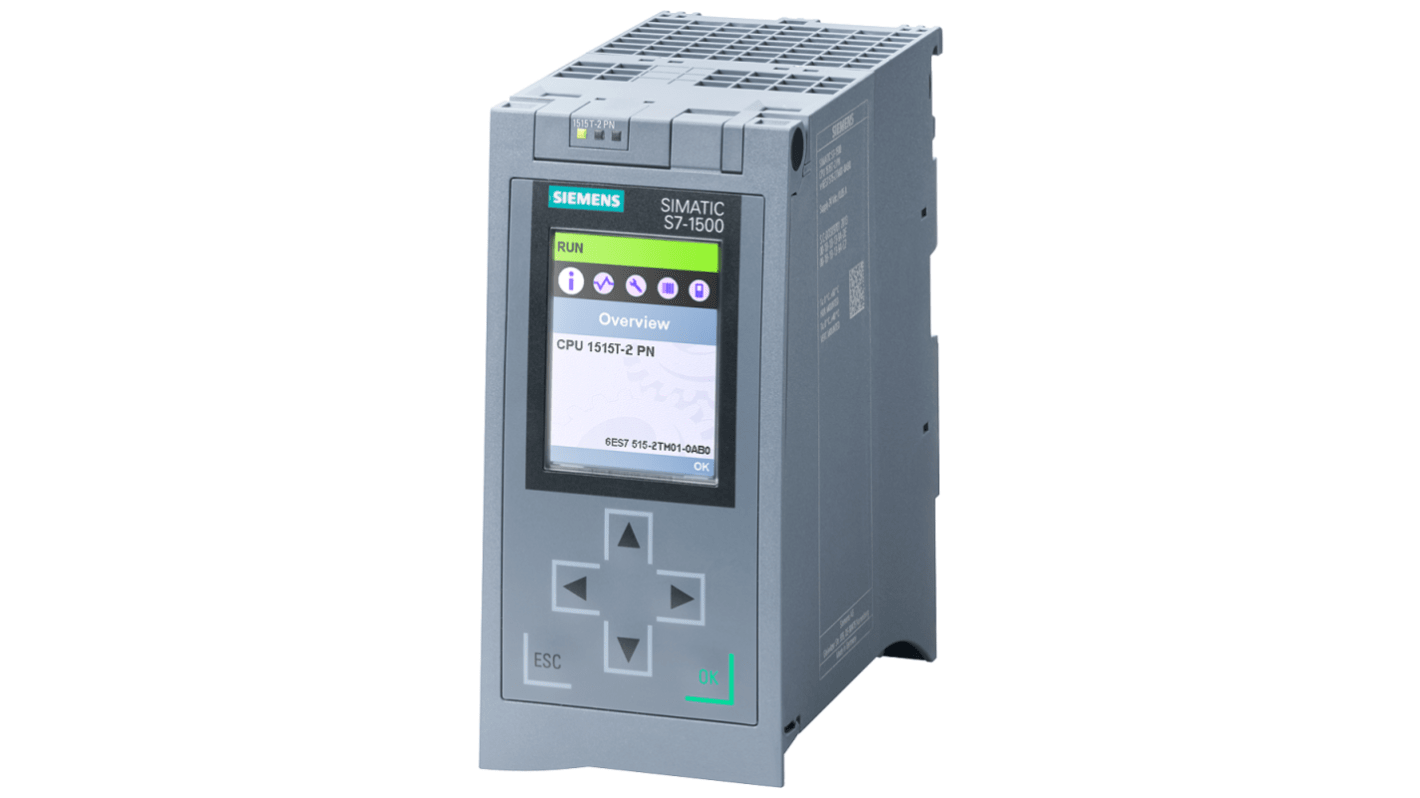

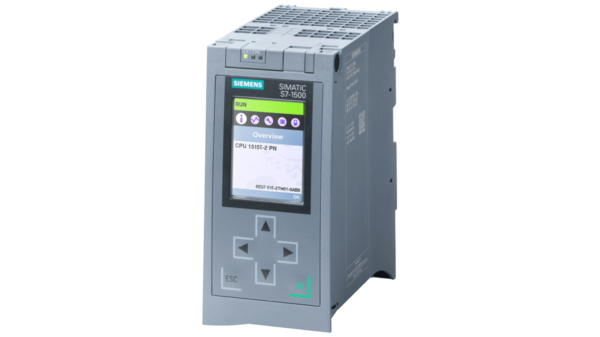

| Description: | Siemens SIMATIC S7-1500T Series PLC CPU for Use with SIMATIC S7-1500 Series, CPU Output, 20-Input |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | SIMATIC S7-1500T |
| Number of Inputs | 20 |
| Output Type | CPU |
| For Use With | SIMATIC S7-1500 Series |
| Number of Digital Inputs | 20 |
| Number of Outputs | 20 |
| Voltage Category | 24 V DC |
| Network Type | Ethernet, Profinet |
| Number of Digital Outputs | 20 |
| Kit Included | No |
| Interface | PROFINET |
| Dimensions | 70 x 129 x 147 mm |
| Minimum Operating Temperature | -40°C |
| Depth | 129mm |
| Program Capacity | 750 kB |
| Programming Interface | Ethernet |
| Maximum Operating Temperature | +70°C |
| Communication Port Type | MODBUS |
| Battery Backup | No |
| Programming Language Used | FBD, GRAPH, Ladder Logic, SCL, STL |
| Width | 70mm |
| Display Included | Yes |
