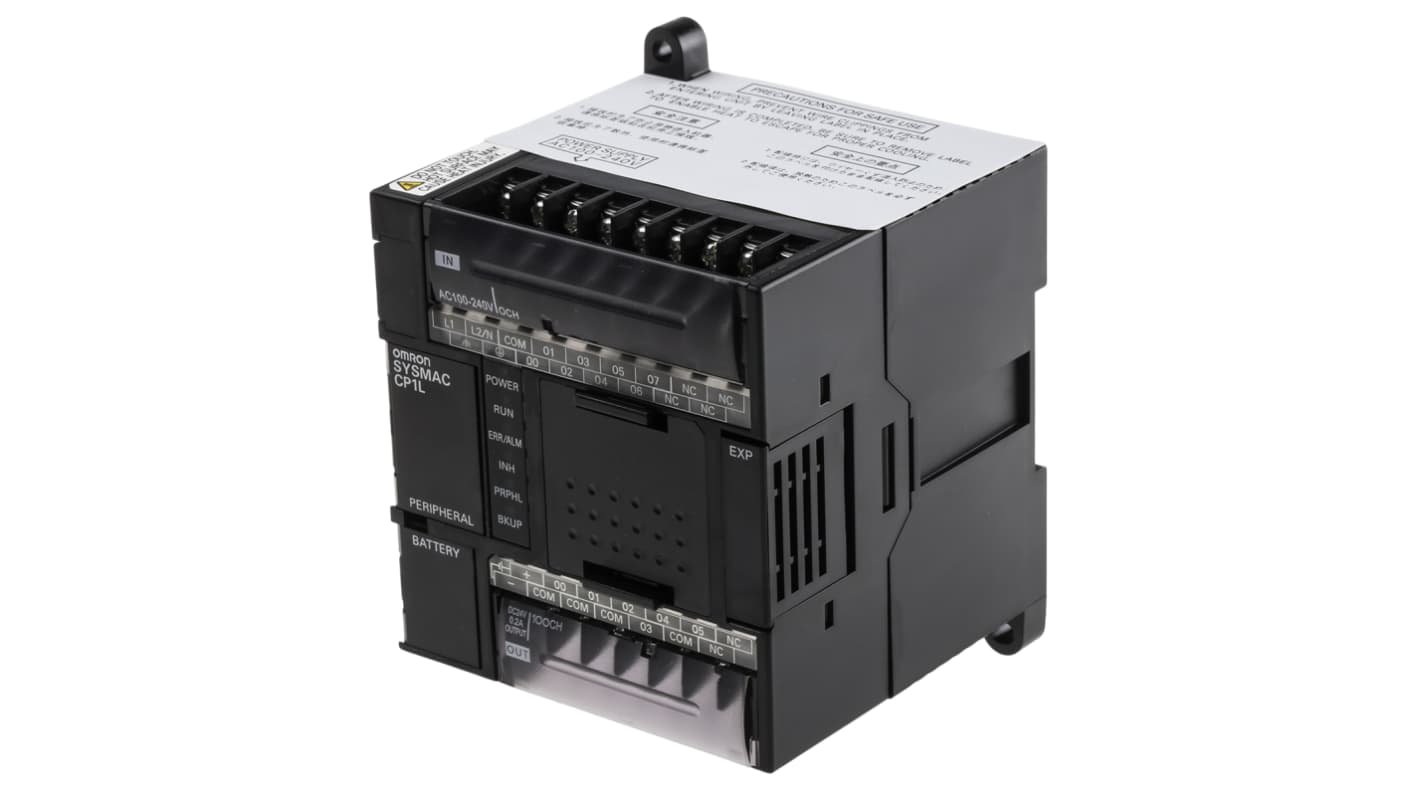

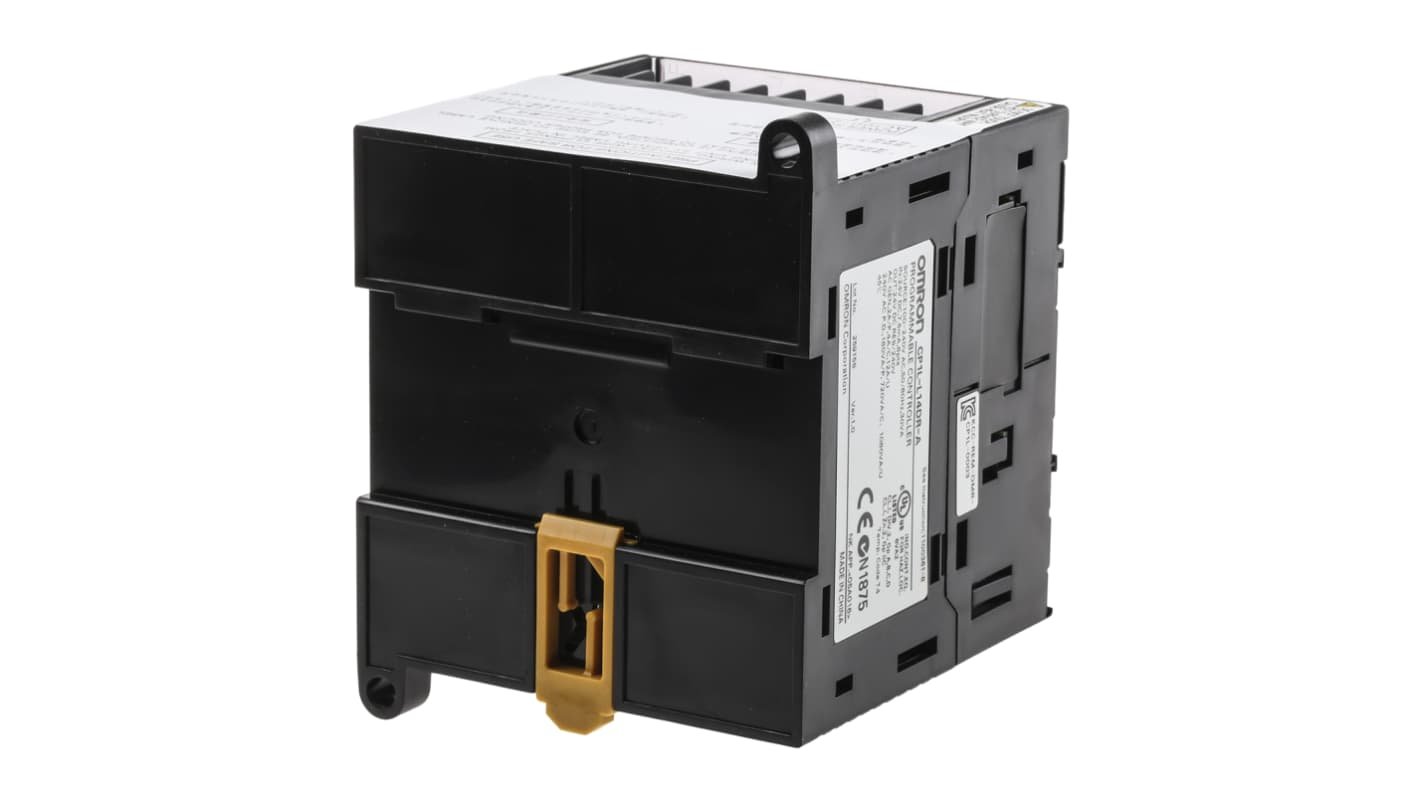

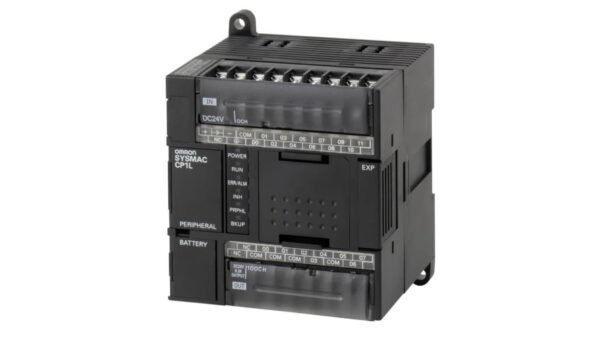

| Part #: | CP1L-L14DR-A |
|---|---|
| Manufacturer: | Omron |
| Description: | Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 8 (DC)-Input, DC Input |
|
Select all
|
Attribute
|
Value
|
|---|---|---|
|
|
Brand | Omron |
|
|
Manufacturer Series | CP1L |
|
|
Number of Inputs | 8 (DC) |
|
|
Output Type | Relay |
|
|
For Use With | SYSMAC CP1L Series |
|
|
Input Type | DC |
|
|
Voltage Category | 85 → 264 V ac |
|
|
Number of Outputs | 6 (Relay) |
|
|
Network Type | USB |
|
|
Mounting Type | DIN Rail |
|
|
Memory | 10000 (Data Memory) Words, 5000 (Program Memory) Steps |
|
|
Programming Interface | Computer |
|
|
Battery Backup | Yes |
|
|
Length | 86mm |
|
|
Depth | 85mm |
|
|
Maximum Operating Temperature | +55°C |
|
|
Communication Port Type | USB 1.1 |
|
|
Number of Communication Ports | 1 |
|
|
Programming Language Used | Ladder Logic |
|
|
Output Current | 2 A |
|
|
Width | 110mm |
|
|
Dimensions | 86 x 110 x 85 mm |
|
|
Program Capacity | 5000 Steps |
|
|
Minimum Operating Temperature | 0°C |
|
|
Select all
|
|
|---|---|---|
|
|
Brand Omron |
|
|
|
Manufacturer Series CP1L |
|
|
|
Number of Inputs 8 (DC) |
|
|
|
Output Type Relay |
|
|
|
For Use With SYSMAC CP1L Series |
|
|
|
Input Type DC |
|
|
|
Voltage Category 85 → 264 V ac |
|
|
|
Number of Outputs 6 (Relay) |
|
|
|
Network Type USB |
|
|
|
Mounting Type DIN Rail |
|
|
|
Memory 10000 (Data Memory) Words, 5000 (Program Memory) Steps |
|
|
|
Programming Interface Computer |
|
|
|
Battery Backup Yes |
|
|
|
Length 86mm |
|
|
|
Depth 85mm |
|
|
|
Maximum Operating Temperature +55°C |
|
|
|
Communication Port Type USB 1.1 |
|
|
|
Number of Communication Ports 1 |
|
|
|
Programming Language Used Ladder Logic |
|
|
|
Output Current 2 A |
|
|
|
Width 110mm |
|
|
|
Dimensions 86 x 110 x 85 mm |
|
|
|
Program Capacity 5000 Steps |
|
|
|
Minimum Operating Temperature 0°C |
|
