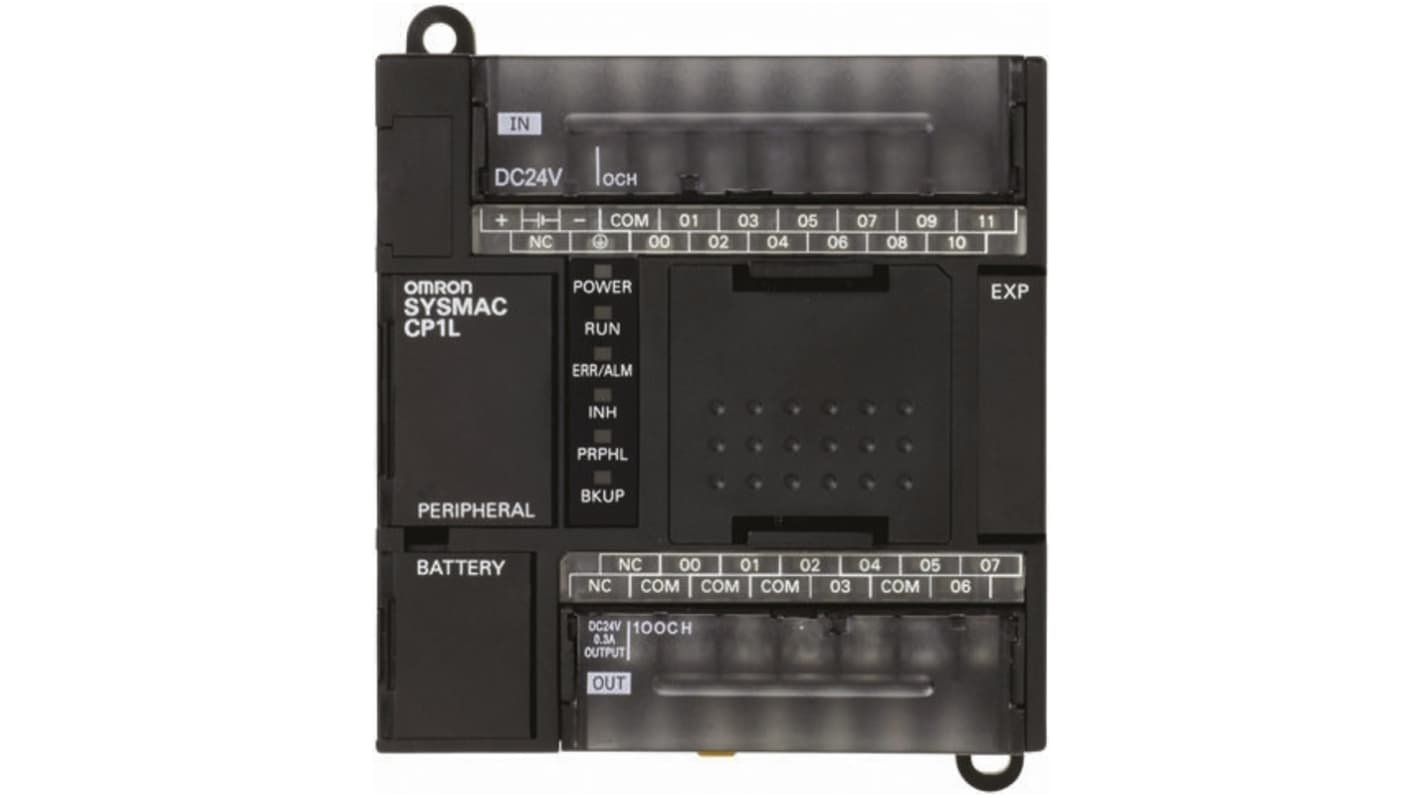

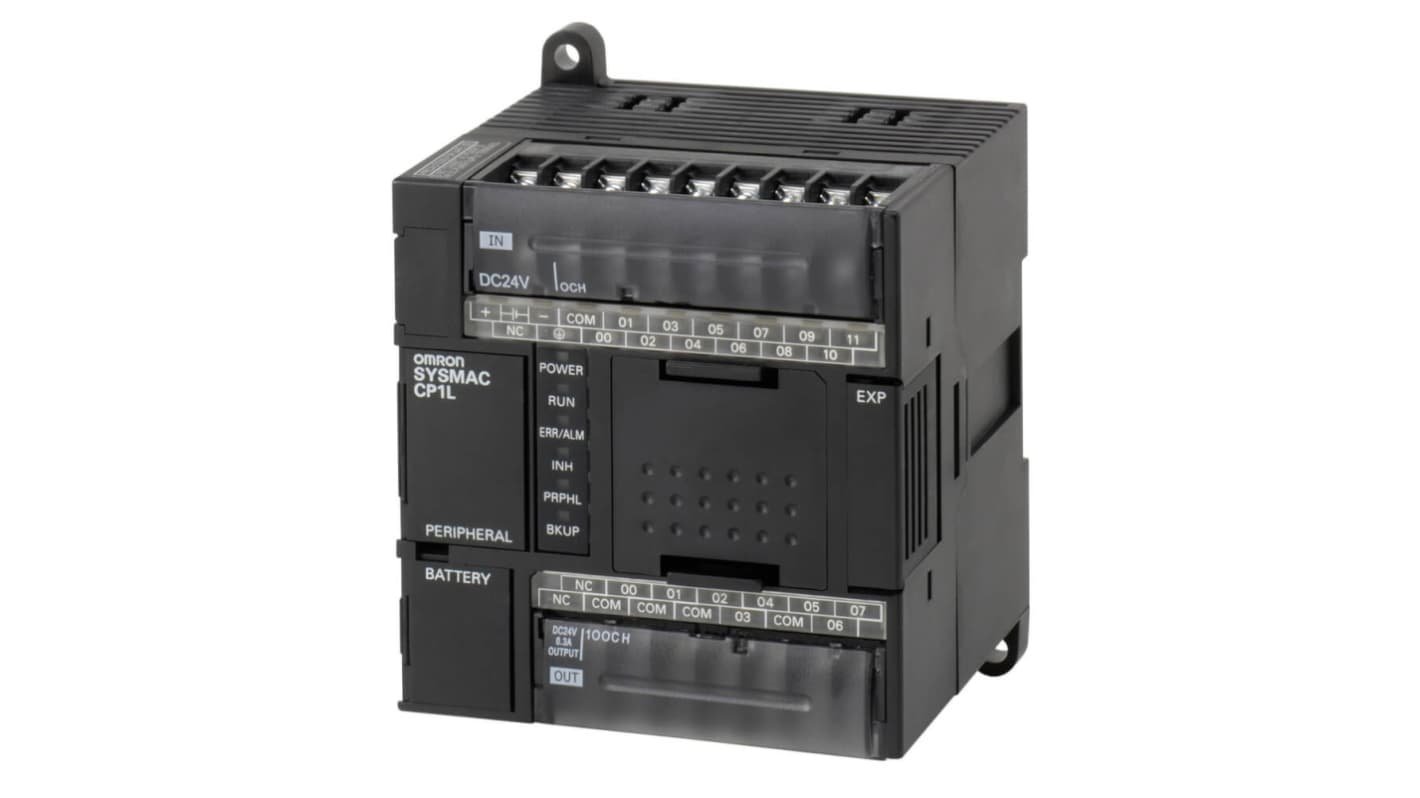

| Part #: | CP1L-L20DR-A |
|---|---|
| Manufacturer: | Omron |
| Description: | Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 12 (DC)-Input, PNP/NPN Input |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | CP1L |
| Number of Inputs | 12 (DC) |
| Output Type | Relay |
| For Use With | SYSMAC CP1L Series |
| Input Type | PNP/NPN |
| Number of Digital Inputs | 12 |
| Voltage Category | 85 → 264 V ac |
| Number of Outputs | 8 (Relay) |
| Number of Digital Outputs | 8 |
| Network Type | USB |
| Memory | 10000 (Data Memory) Words, 5000 (Program Memory) Steps |
| Programming Interface | Computer |
| Minimum Operating Temperature | 0°C |
| Dimensions | 85 x 86 x 90 mm |
| Communication Port Type | USB |
| Width | 86mm |
| Output Current | 2 A |
| Programming Language Used | Ladder Logic |
| Number of Communication Ports | 1 |
| Maximum Operating Temperature | +55°C |
| Battery Backup | Yes |
| Program Capacity | 5 K Steps |
| Depth | 85mm |
| Length | 86mm |
| Mounting Type | DIN Rail |
