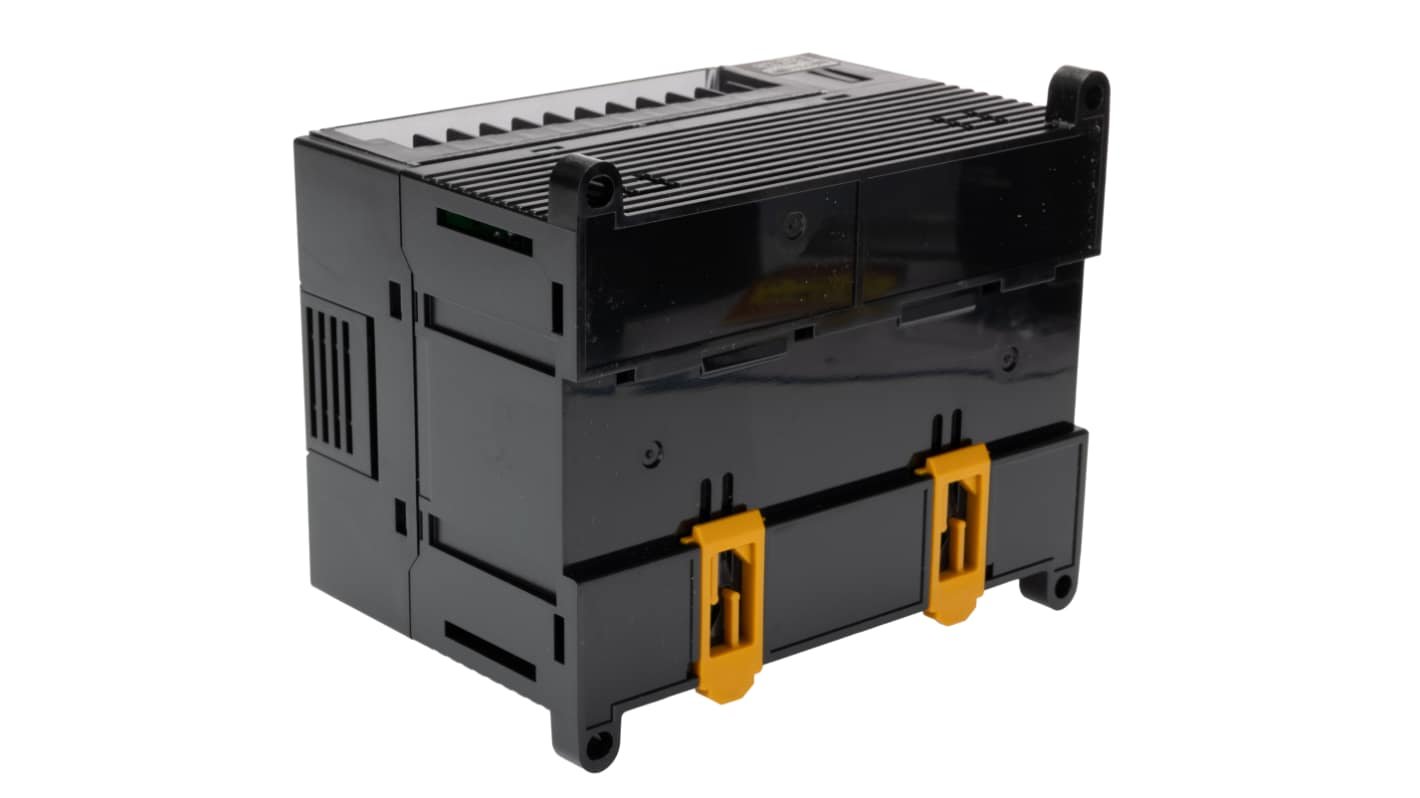

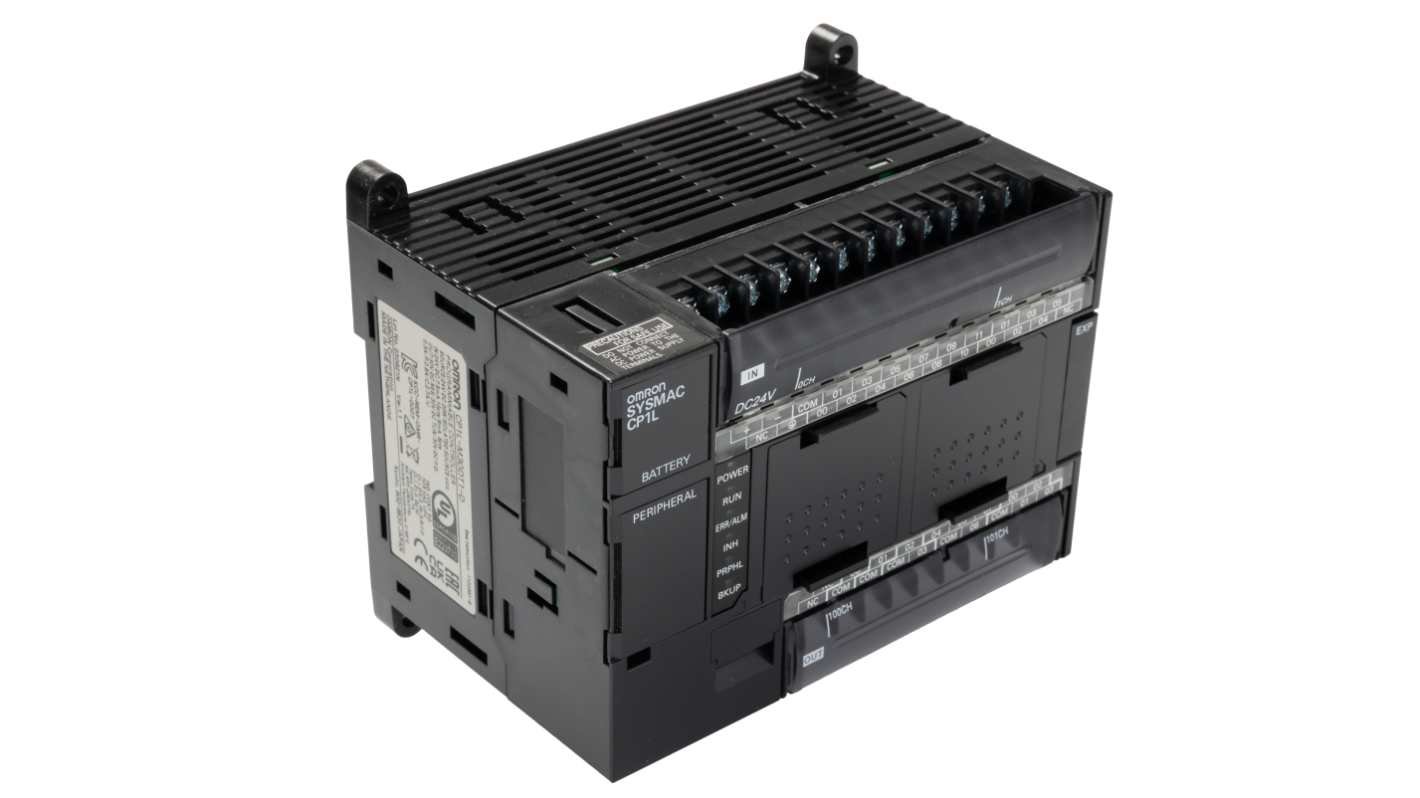

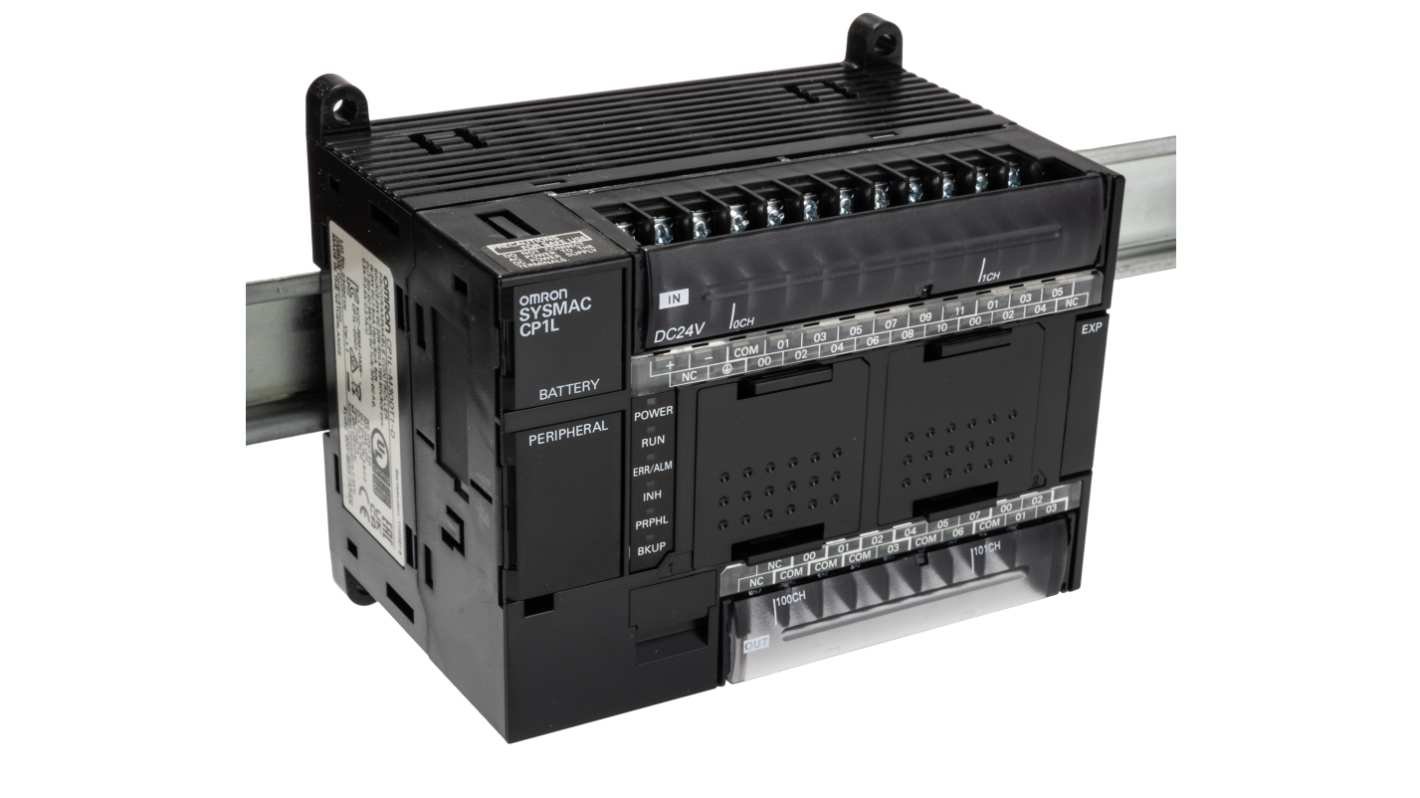

CP1L-M30DT1-D

Compatible with all other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC’s
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality

Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

This PLC CPU is crafted for efficient control in industrial automation applications. It offers robust performance and the ability to manage a broad spectrum of inputs and outputs, enhancing process efficiency. With advanced communication capabilities, it provides connectivity and compatibility across different automation environments, making it an essential choice for professionals in the electronics and mechanical sectors.

• Supports 18 DC inputs for versatile sensor integration
• Features 12 transistor outputs for effective signal control
• USB communication enables easy data transfer
• Programmable using Ladder Logic for straightforward operation
• Extensive memory capacity accommodates complex tasks
• Designed for DIN rail mounting, simplifying installation

• Utilised with SYSMAC CP1L series for improved automation
• Employed in machine control systems for streamlined processes
• Applied in production lines where input/output management is vital
• Used in test equipment for accurate data handling

Ladder Logic is used for programming, providing a user-friendly interface.

Yes, it operates effectively in temperatures from 0 to +55°C.

It connects through a USB communication port, allowing for easy integration.

It supports up to 10,000 steps in its programming memory.

Yes, it includes a battery backup to maintain operation during power interruptions.

UC1, N, L, CE

Omron CP1L CPU’s, Expansion Modules and Accessories

Omron’s CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.
