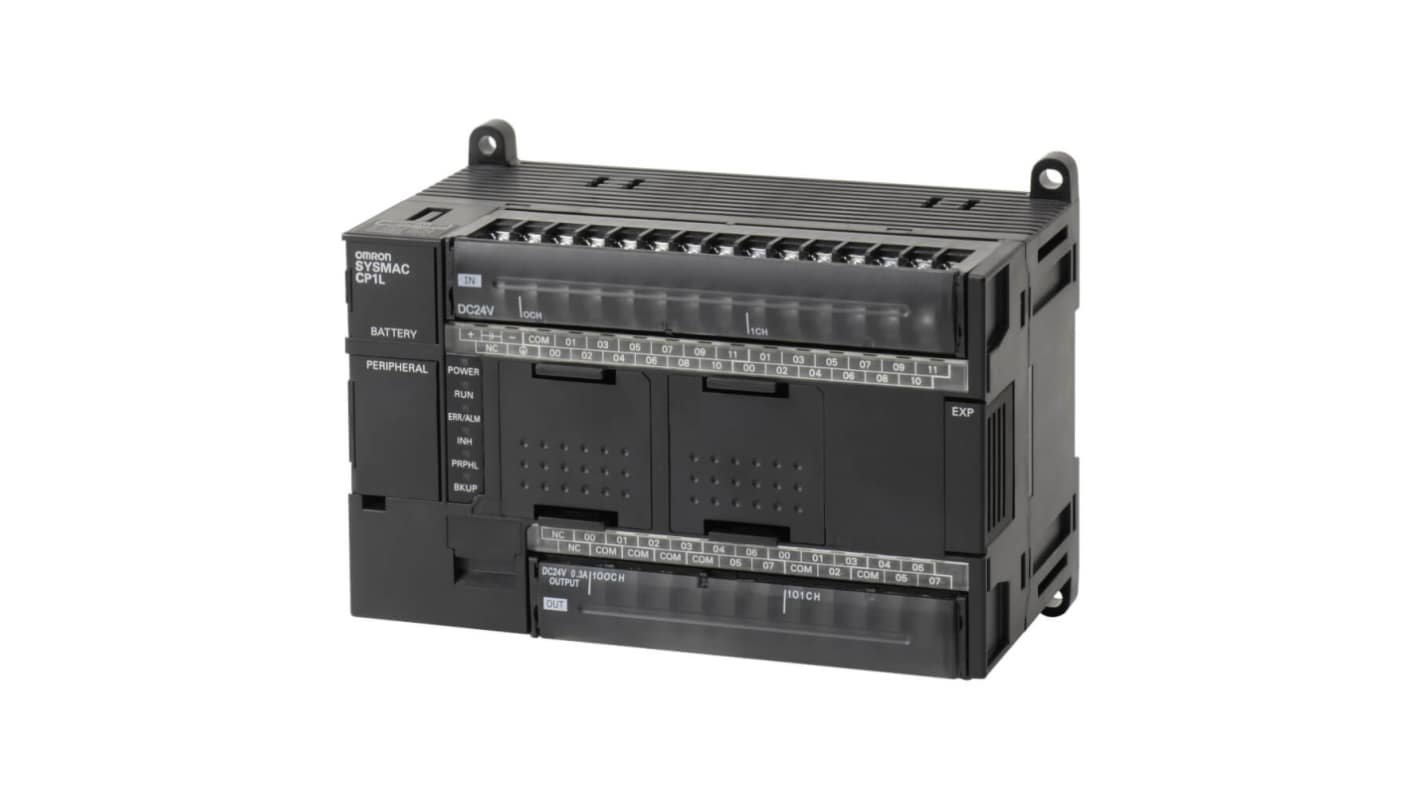

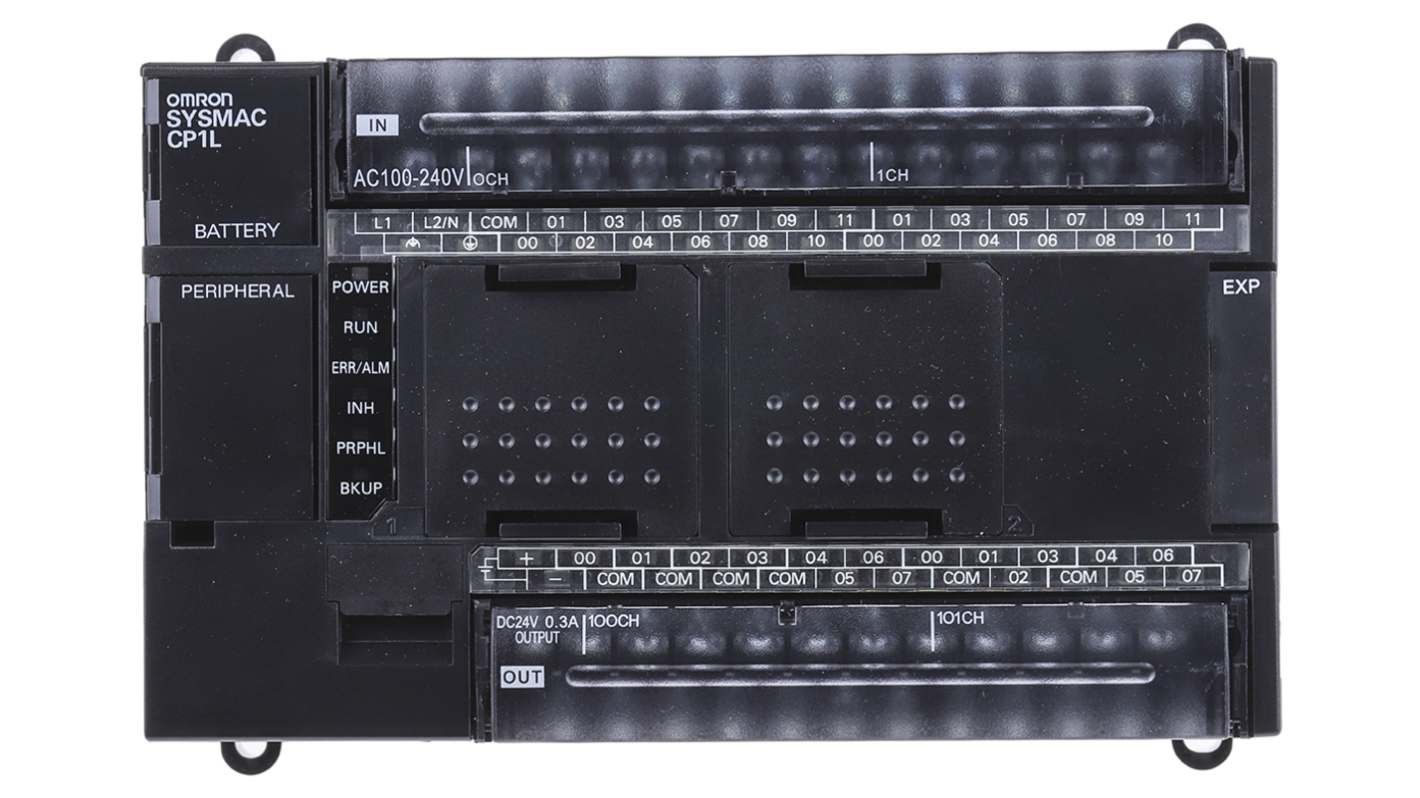

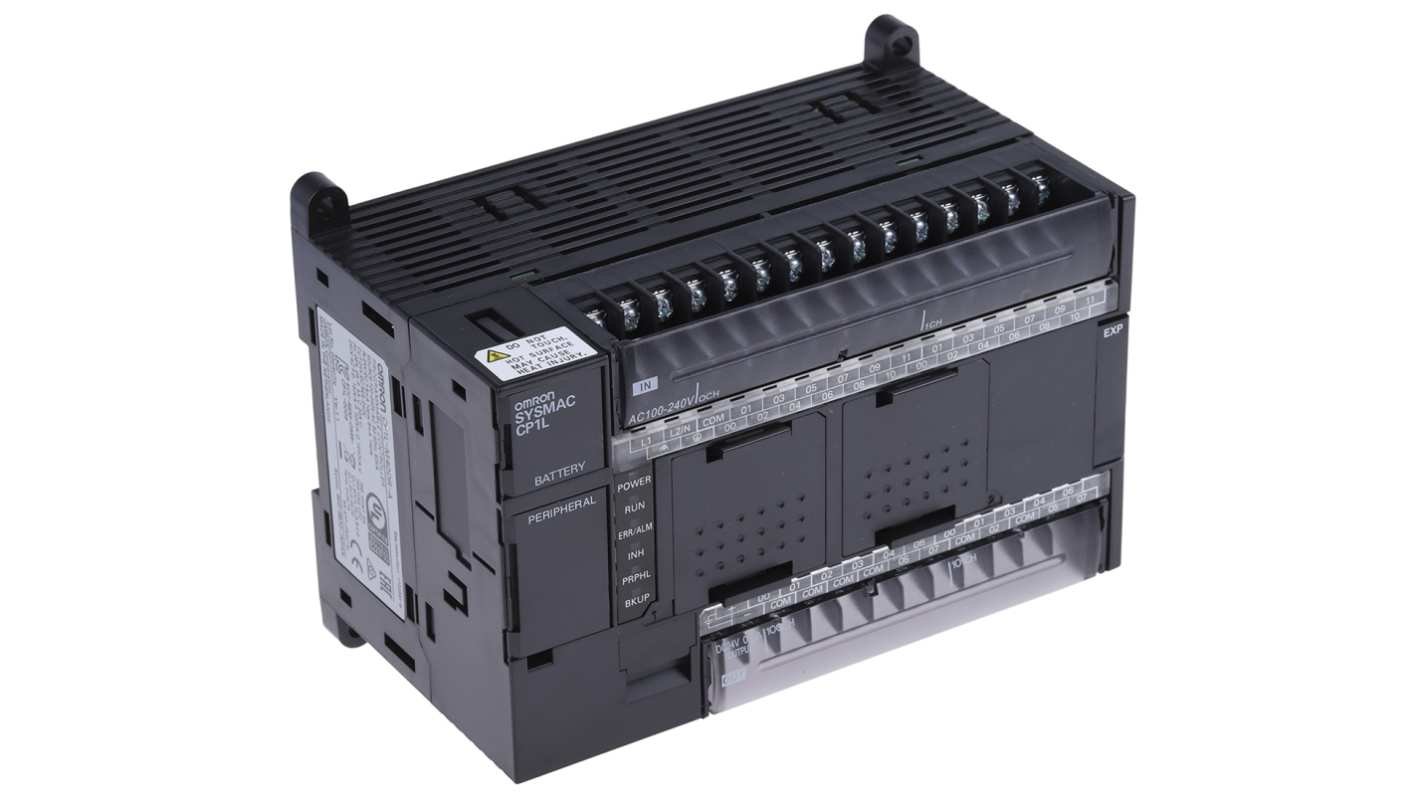

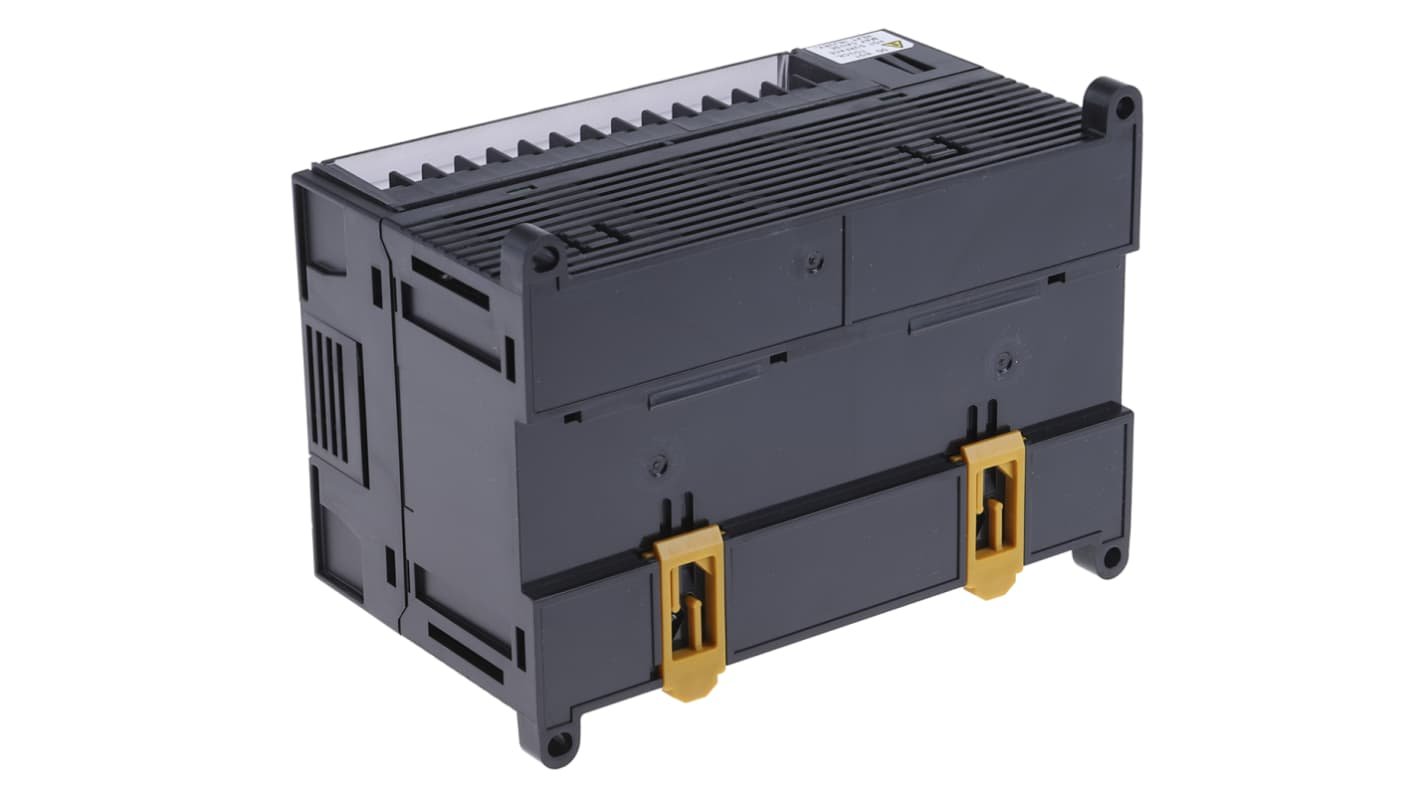

| Part #: | CP1L-M40DR-A |
|---|---|
| Manufacturer: | Omron |
| Description: | Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, 100 → 240 V Supply, Relay Output, 24 (DC)-Input, DC |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | CP1L |
| Number of Inputs | 24 (DC) |
| Output Type | Relay |
| For Use With | SYSMAC CP1L Series |
| Supply Voltage | 100 → 240 V |
| Input Type | DC |
| Number of Digital Inputs | 24 |
| Number of Outputs | 16 (Relay) |
| Voltage Category | 85 → 264 V ac |
| Network Type | USB |
| Number of Digital Outputs | 16 |
| Length | 150mm |
| Number of Analogue Outputs | 25 |
| Number of Analogue Inputs | 25 |
| Mounting Type | DIN Rail |
| Memory | 10000 (Program Memory) Steps, 32000 (Data Memory) Words |
| Programming Interface | Computer |
| Width | 110mm |
| Output Current | 2 A |
| Program Capacity | 10000 Steps |
| Battery Backup | Yes |
| Depth | 85mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +55°C |
| Number of Communication Ports | 1 |
| Communication Port Type | USB 1.1 |
| Programming Language Used | Ladder Logic |
| Dimensions | 150 x 110 x 85 mm |
