| Part #: | CP1L-M60DR-A |
|---|---|
| Manufacturer: | Omron |

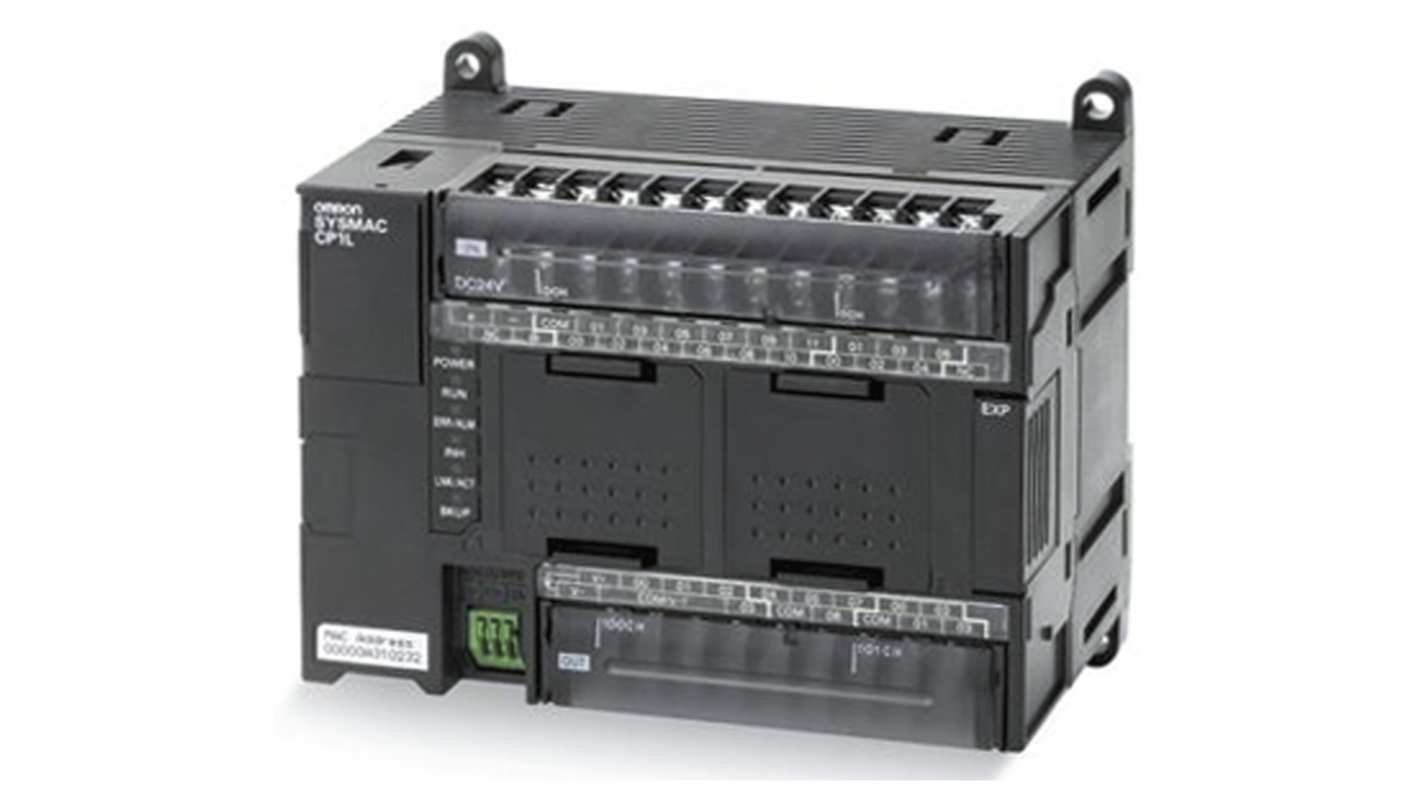

| Description: | Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 36 (DC)-Input, DC Input |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | CP1L |
| Number of Inputs | 36 (DC) |
| Output Type | Relay |
| For Use With | SYSMAC CP1L Series |
| Input Type | DC |
| Voltage Category | 85 → 264 V ac |
| Number of Outputs | 24 (Relay) |
| Network Type | Ethernet |
| Memory | 10K (Program Memory) Steps, 32K (Data Memory) Words |
| Minimum Operating Temperature | 0°C |
| Output Current | 2 A |
| Programming Language Used | Ladder Logic |
| Width | 110mm |
| Length | 195mm |
| Depth | 85mm |
| Program Capacity | 10000 Steps |
| Dimensions | 195 x 110 x 85 mm |
| Maximum Operating Temperature | +55°C |
| Programming Interface | Computer |
| Battery Backup | Yes |
