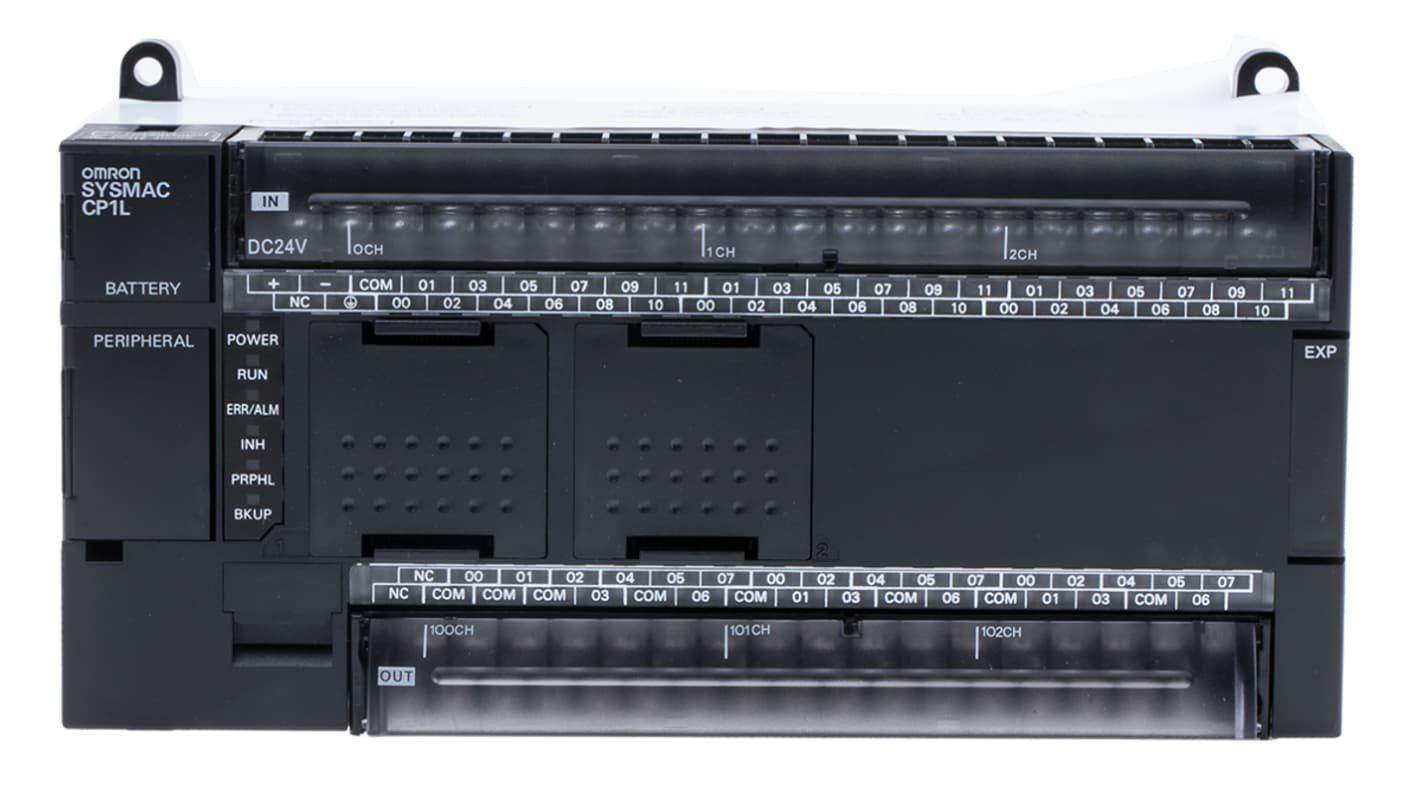

CP1L-M60DT-D

CP1L-M60DT-D

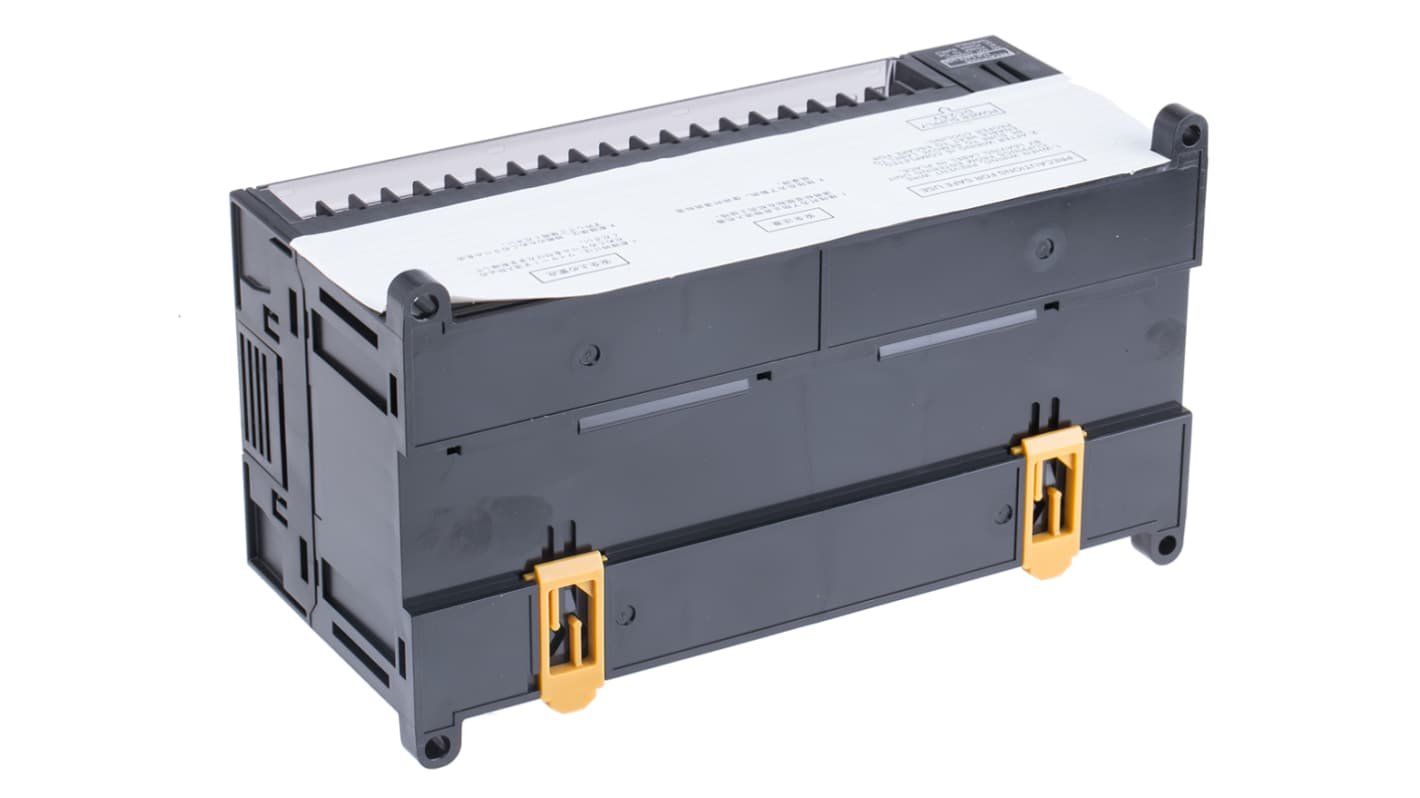

CP1L-M60DT-D - Image 2
SKU a60b071cbe0c Category Tag

Additional information

Part #:

CP1L-M60DT-D
Manufacturer:

Omron
Description:

Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 36-Input, DC Input
Ask for quote

Product details:

Attribute
Value
Manufacturer Series CP1L
Number of Inputs 36
Output Type Transistor
For Use With SYSMAC CP1L Series
Input Type DC
Voltage Category 20.4 → 26.4 V dc
Number of Outputs 24
Network Type Peripheral USB Port
Communication Port Type USB 1.1
Battery Backup Yes
Program Capacity 10K Steps
Memory 32K Words
Depth 85mm
Length 195mm
Width 110mm
Dimensions 195 x 110 x 85 mm
Programming Language Used Ladder Logic
Number of Communication Ports 5
Output Current 390 mA
Programming Interface Computer
Minimum Operating Temperature 0°C
Mounting Type DIN Rail
Maximum Operating Temperature +55°C

CP1L CPU

Compatible with all other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC’s
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality

Note

Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Omron CP1L CPU’s, Expansion Modules and Accessories

Omron’s CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.
