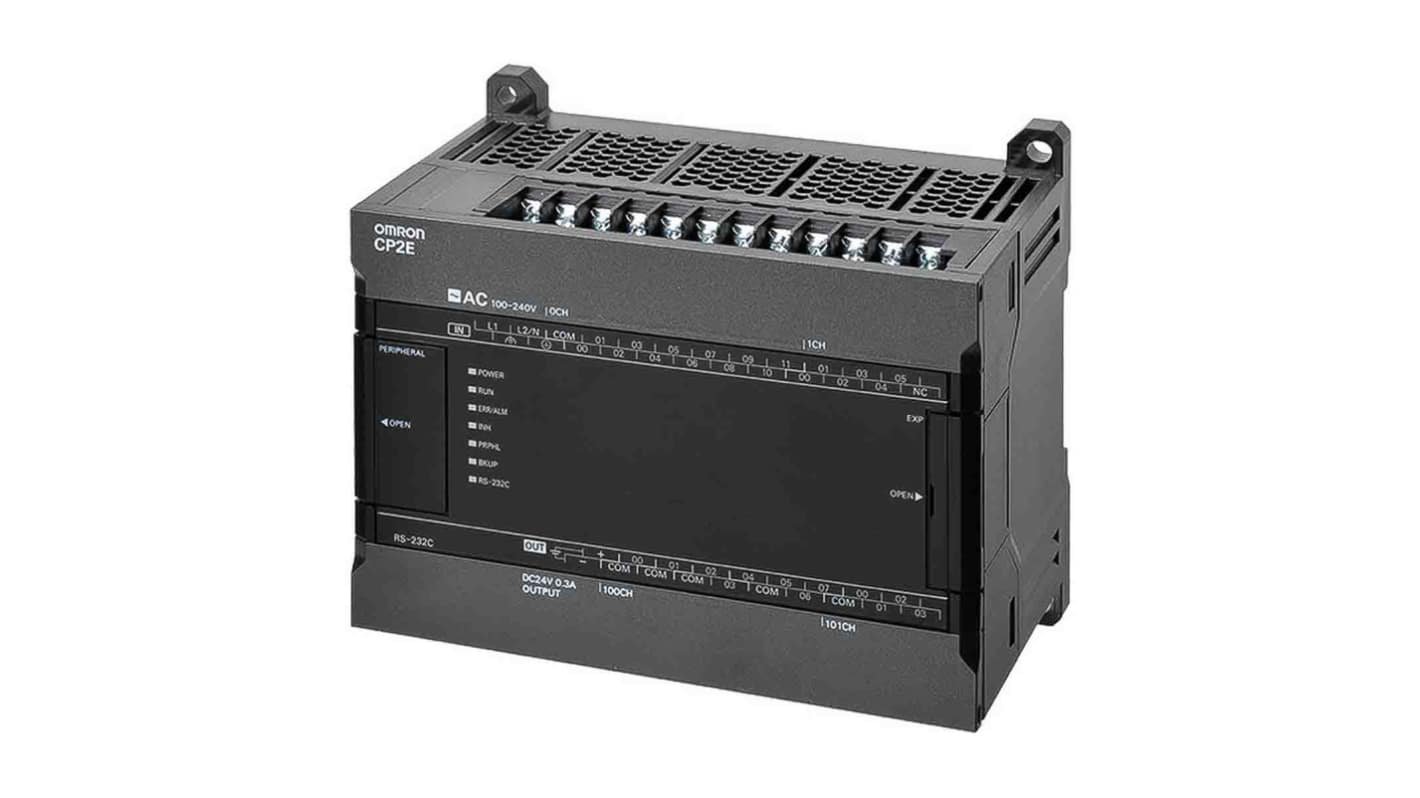

| Part #: | CP2E-E30DR-A |
|---|---|
| Manufacturer: | Omron |
| Description: | Omron CP2E Series PLC CPU for Use with CP2E Series, Relay Output, 18-Input, Digital Input |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | CP2E |
| Number of Inputs | 18 |
| Output Type | Relay |
| For Use With | CP2E Series |
| Input Type | Digital |
| Number of Digital Inputs | 18 |
| Voltage Category | 100 → 240 V ac |
| Number of Outputs | 12 |
| Network Type | Ethernet |
| Number of Digital Outputs | 12 |
| Interface | RS-485 |
| Display Included | Yes |
| Communication Port Type | RS-232, RS-485, USB |
| Number of Communication Ports | 3 |
| Battery Backup | Yes |
| Programming Language Used | Ladder Diagram |
| Mounting Type | Panel Mount |
| Width | 80mm |
| Length | 130mm |
| Minimum Operating Temperature | -20°C |
| Depth | 110mm |
| Program Capacity | 4 kB |
| Dimensions | 130 x 80 x 110 mm |
| Maximum Operating Temperature | +60°C |
