CP2E-S30DT1-D

SKU b8621d6fcb38 Category Tag

Additional information

Part #:

CP2E-S30DT1-D

Manufacturer:

Omron

Description:

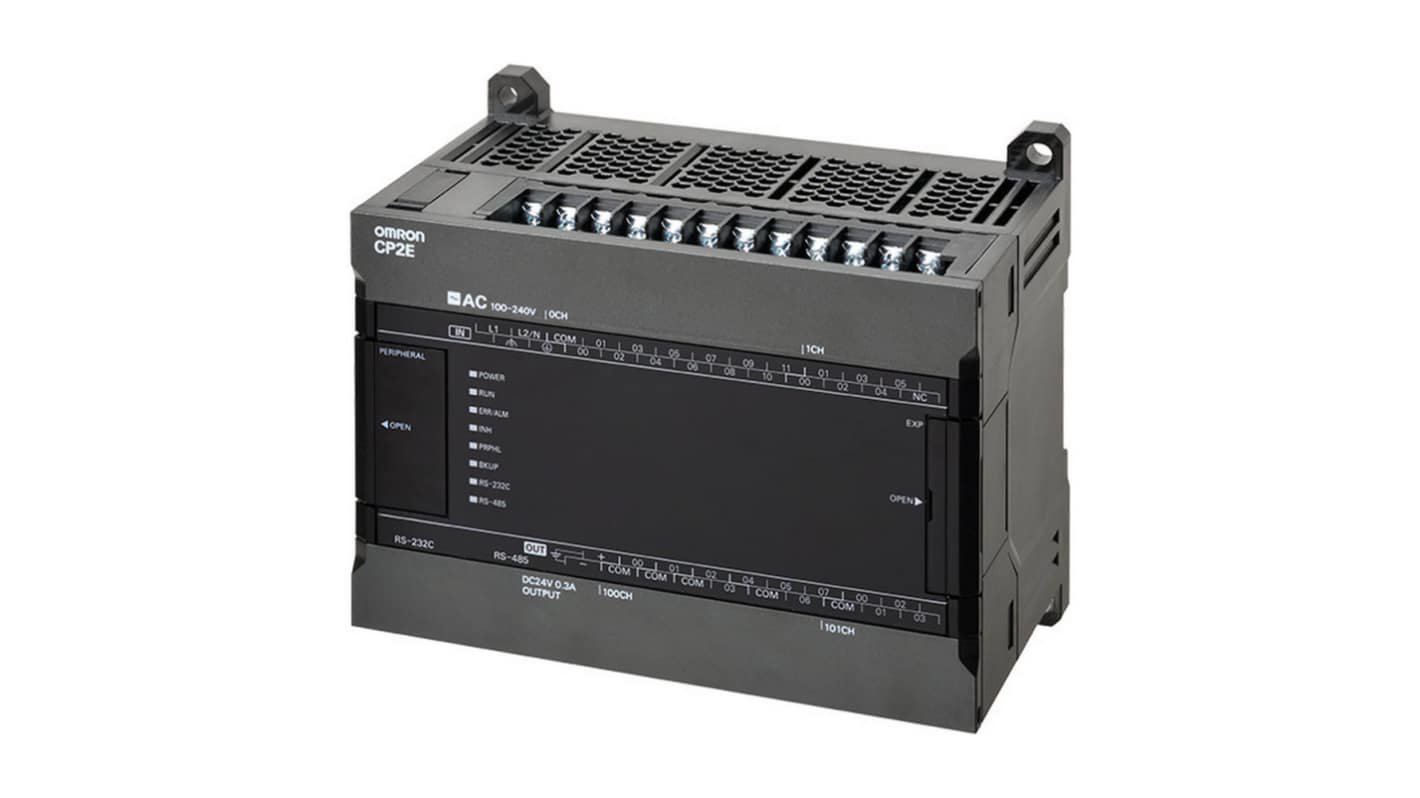

Omron CP2E Series PLC CPU for Use with CP2E Series, Transistor Output, 18-Input, Digital Input

Product details:

Attribute
Value
Manufacturer Series CP2E
Number of Inputs 18
Output Type Transistor
For Use With CP2E Series
Input Type Digital
Number of Digital Inputs 18
Number of Outputs 12
Voltage Category 24 V dc
Number of Digital Outputs 12
Network Type Ethernet
Interface RS-485
Minimum Operating Temperature -20°C
Number of Communication Ports 3
Battery Backup Yes
Programming Language Used Ladder Diagram
Mounting Type Panel Mount
Width 80mm
Communication Port Type RS-232, RS-485, USB
Length 130mm
Dimensions 130 x 80 x 110 mm
Maximum Operating Temperature +60°C
Depth 110mm
Program Capacity 10 kB
Display Included Yes
CP2E series compact PLC – Network type,18 DI, 12DO,Relay output,Power supply 24 VDC,10 kStep Program memory

Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting
