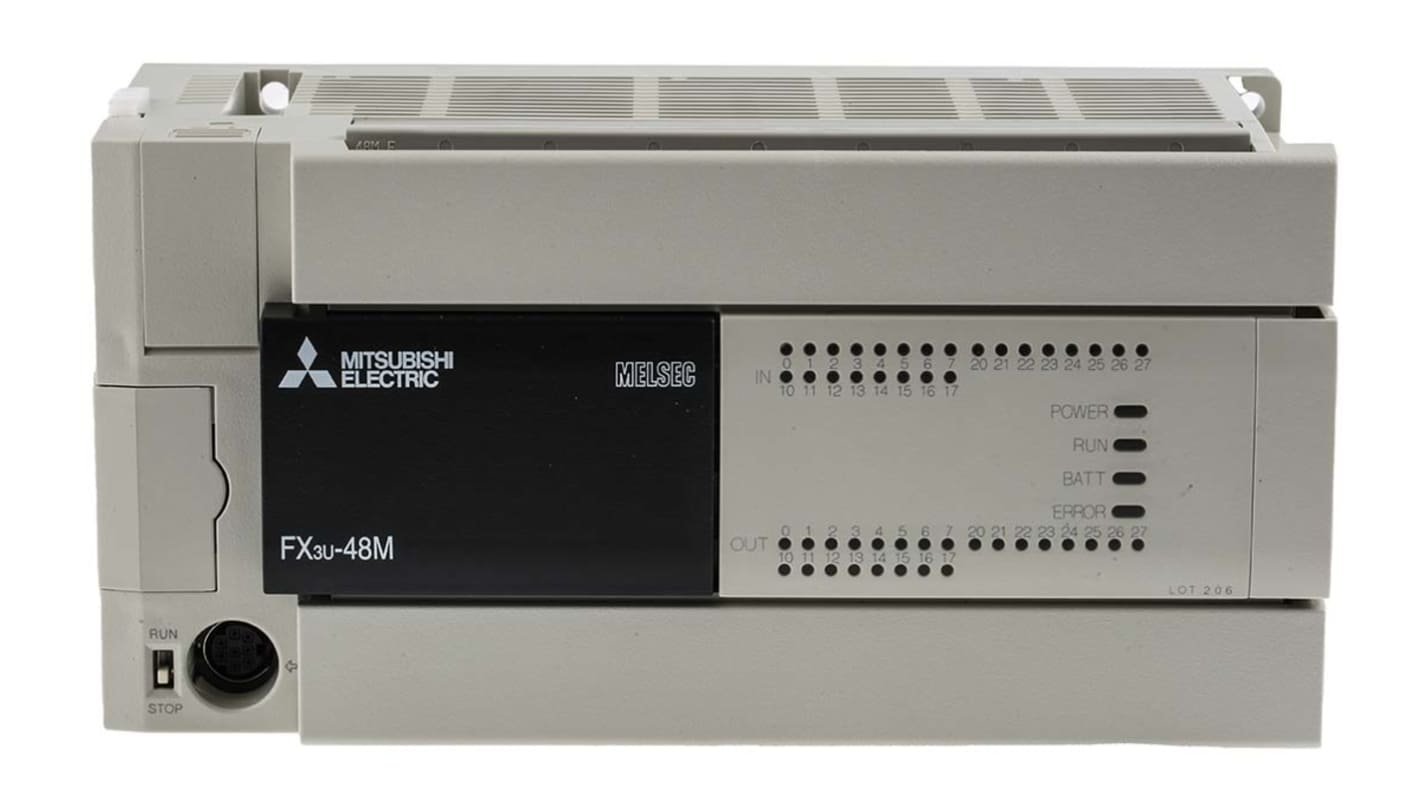

FX3U-48MR/ES

FX3U-48MR/ES

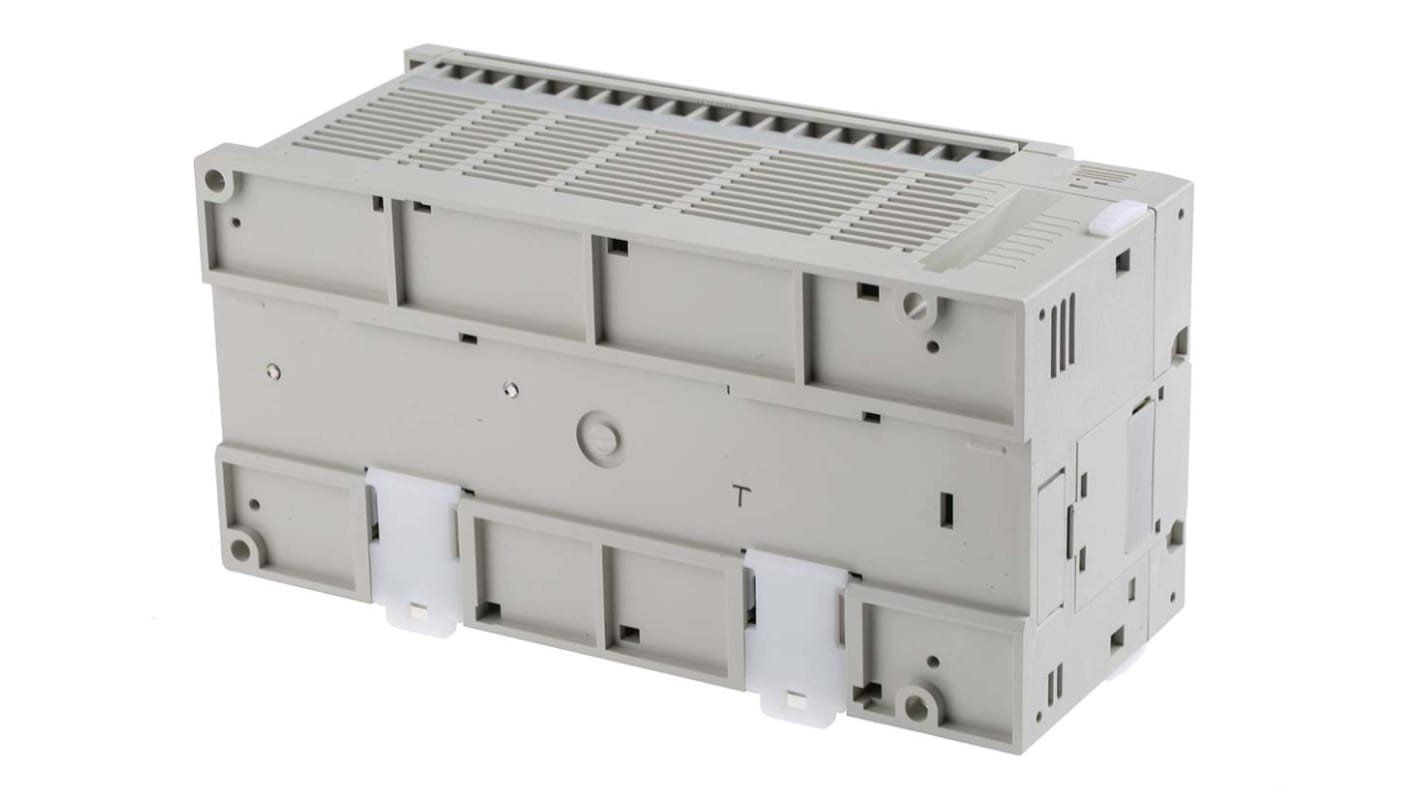

FX3U-48MR/ES - Image 2

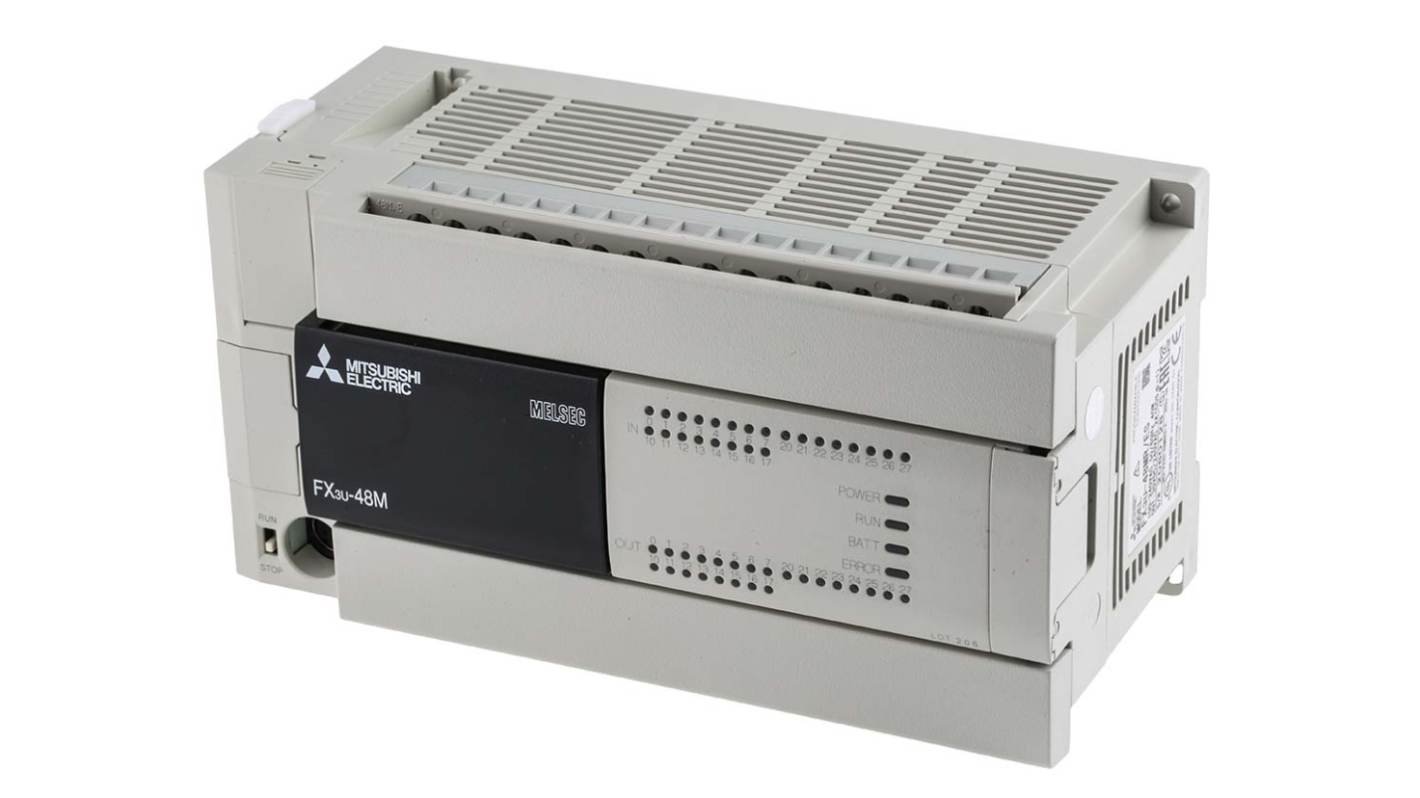

FX3U-48MR/ES - Image 3

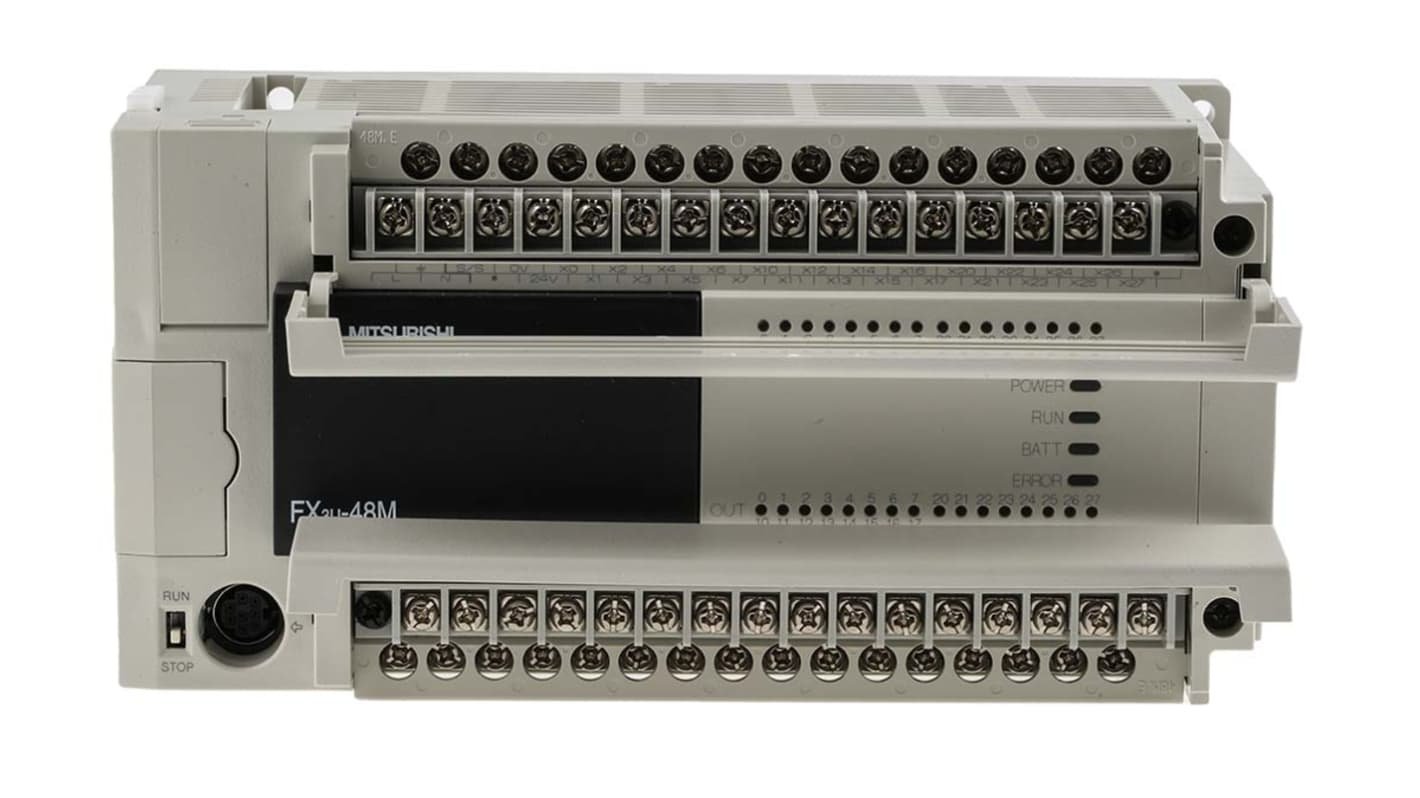

FX3U-48MR/ES - Image 4
SKU 94bb1eebdee4 Category Tag

Additional information

Part #:

FX3U-48MR/ES
Manufacturer:

Mitsubishi Electric
Description:

Mitsubishi FX3U Series Logic Module, 100 → 240 V ac Supply, Relay Output, 24-Input, Sink, Source Input
Ask for quote

Product details:

Attribute
Value
Manufacturer Series FX3U
Number of Inputs 24
Output Type Relay
Supply Voltage 100 → 240 V ac
Input Type Sink, Source
Number of Outputs 24
Depth 86mm
Length 182mm
Maximum Operating Temperature +50°C
Programming Interface Computer, HMI
Minimum Operating Temperature 0°C
Output Current 8 A
Program Capacity 64000 Steps
Dimensions 182 x 90 x 86 mm
Programming Language Used Ladder Logic
Mounting Type DIN Rail
Width 90mm

Mitsubishi Logic Module

The Mitsubishi FX3U series logic module has 24 inputs and 24 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for the applications that require a larger space. The logic module has a voltage rating that ranges between 100VAC and 240VAC.
Mitsubishi FX3U
FX3U CPU’s are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC’s.

Features and Benefits

Operating temperature ranges between 0°C and 50°C
High processing speed
64K steps battery-backed RAM memory
249 applied instructions, 7680 auxiliary relays, 512 timers, 251 counters and40768 data registers
0.065μs basic instruction
Backward compatibility

Applications

Industrial
Factory automation
