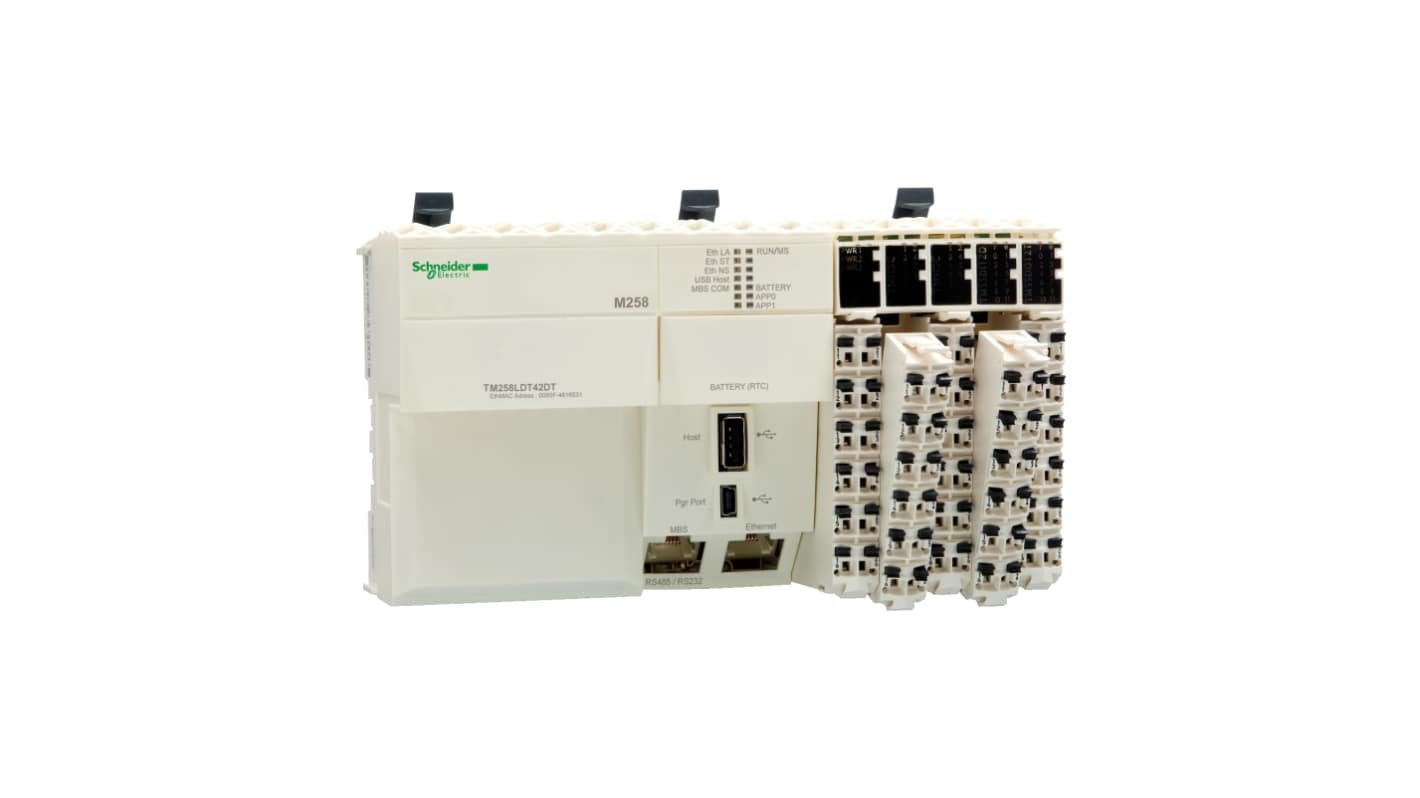

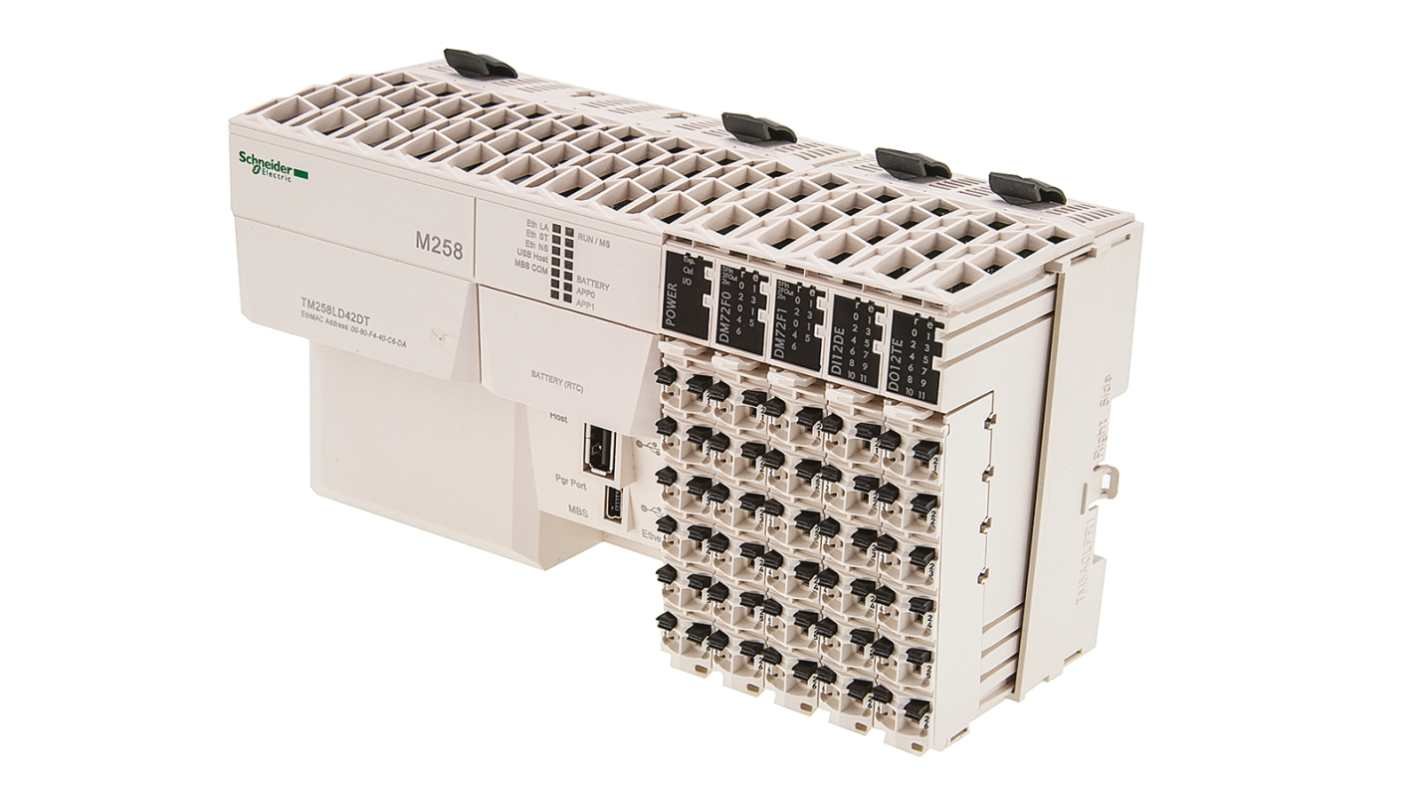

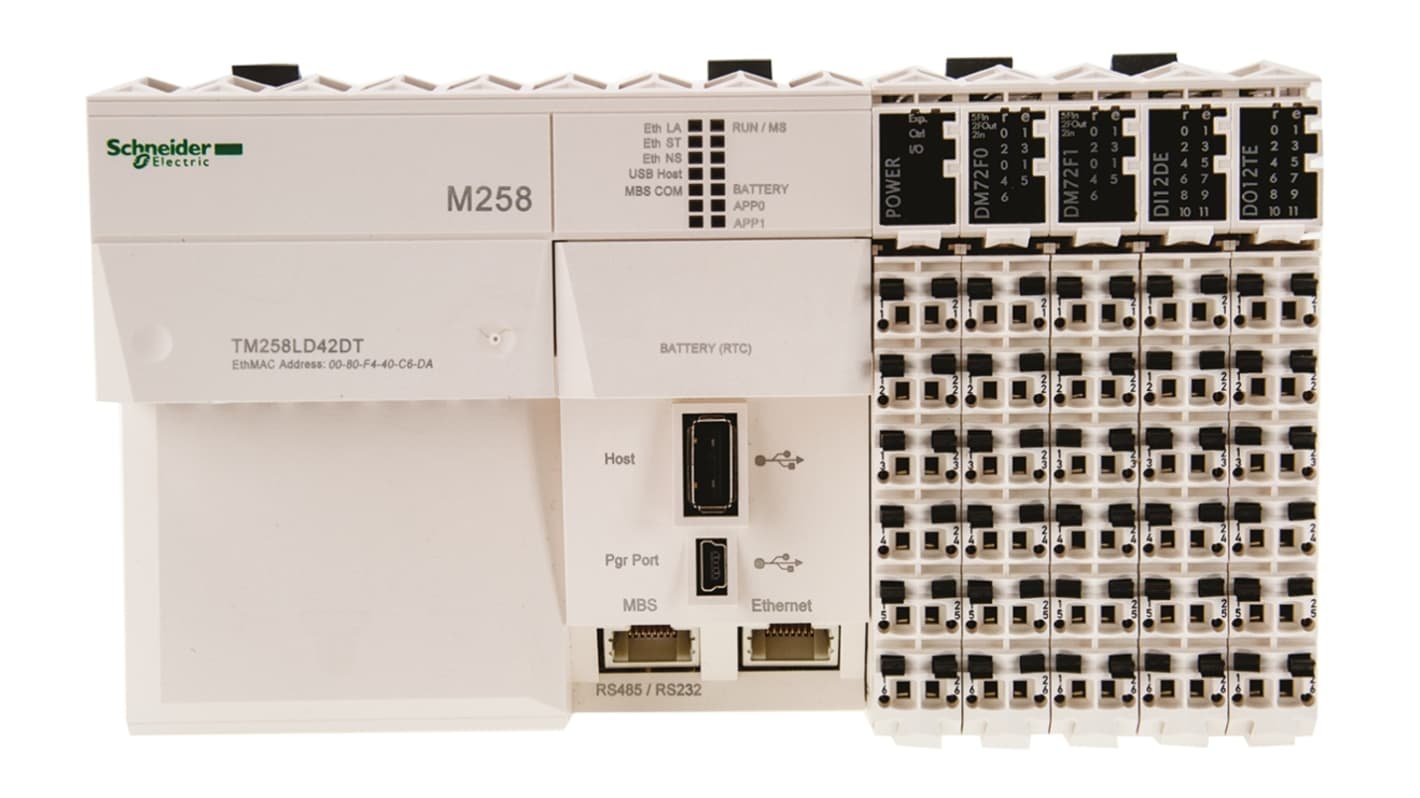

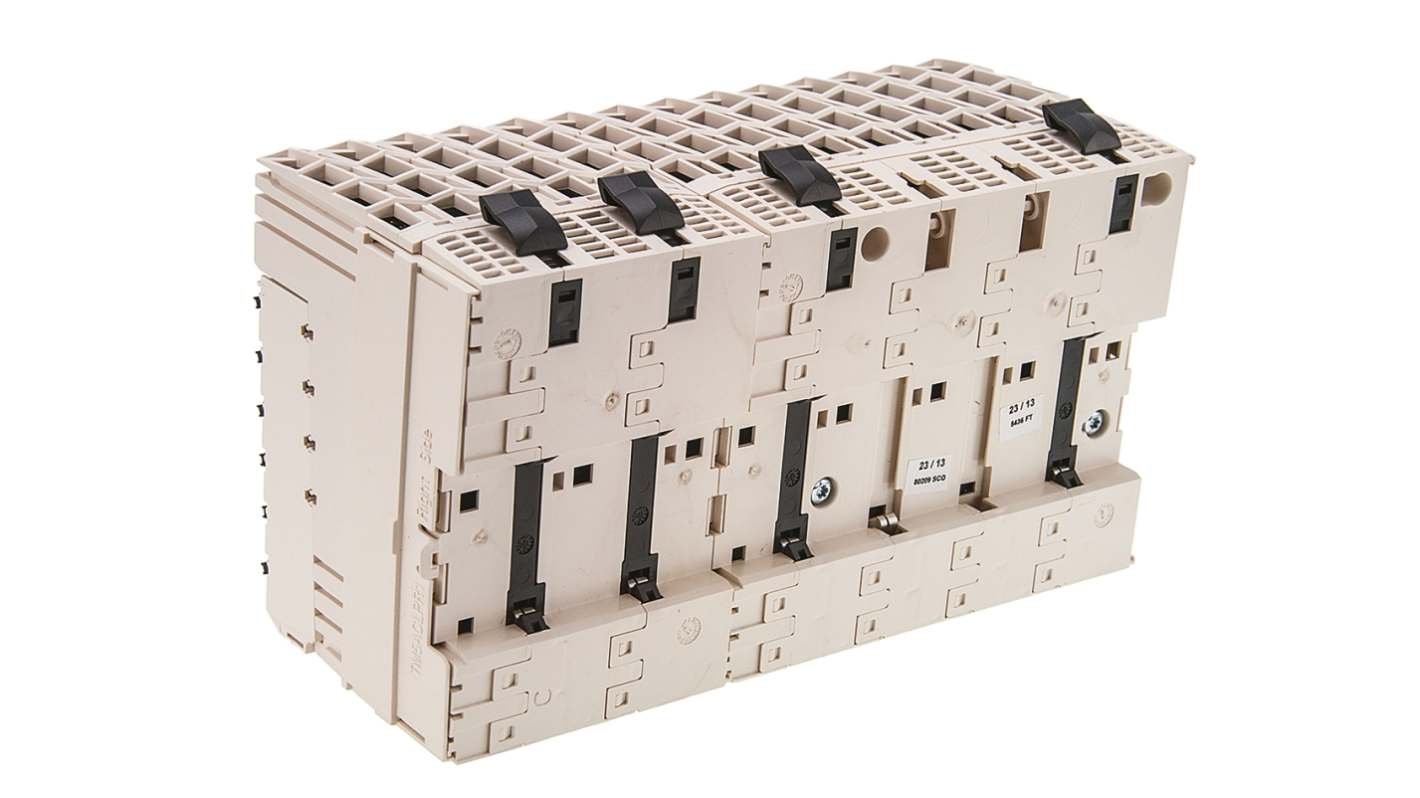

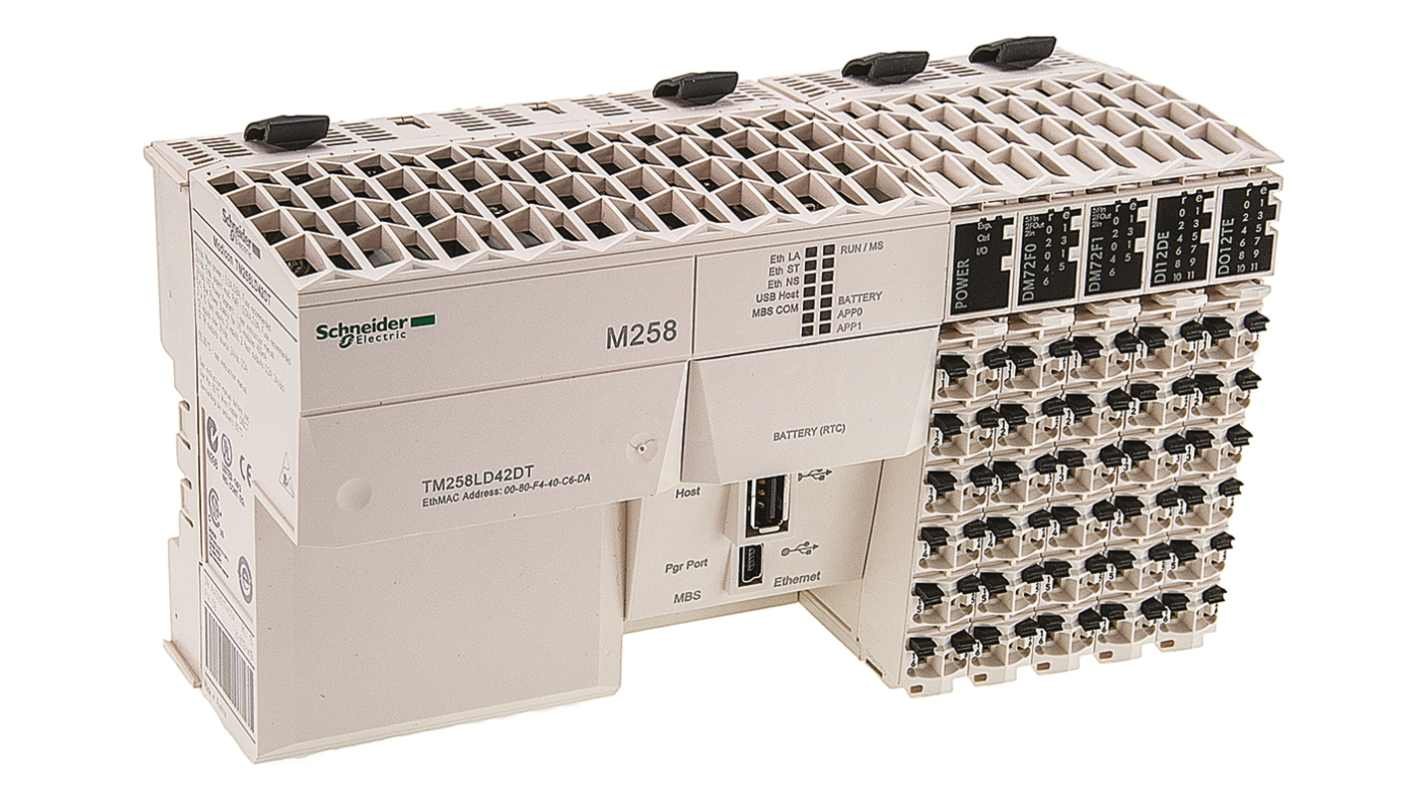

| Part #: | TM258LD42DT |
|---|---|
| Manufacturer: | Schneider Electric |
| Description: | Schneider Electric Modicon M258 Series PLC CPU, Digital Output, 26-Input, Digital Input |
|
Attribute
|
Value
|
|---|---|
| Manufacturer Series | Modicon M258 |
| Number of Inputs | 26 |
| Output Type | Digital |
| Input Type | Digital |
| Voltage Category | 24 V dc |
| Number of Outputs | 16 |
| Network Type | Ethernet |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Minimum Operating Temperature | 0°C |
| Memory | 192 MB |
| Battery Backup | Yes |
| Output Current | 4 mA |
| Number of Communication Ports | 4 |
| Maximum Operating Temperature | +60°C |
| Dimensions | 175 x 99 x 85 mm |
| Standards Met | CSA Certified, UL Listed |
| Communication Port Type | Ethernet, Serial, USB |
| Program Capacity | 128000 Instructions |
| Depth | 85mm |
| Length | 175mm |
| Width | 99mm |
| Mounting Type | DIN Rail |
